Design Case study
Die Grinder Attachment for Marble Carvers
Redesigning an attachment as per basic requirements of the artisans
by
Case Study - Slide Show

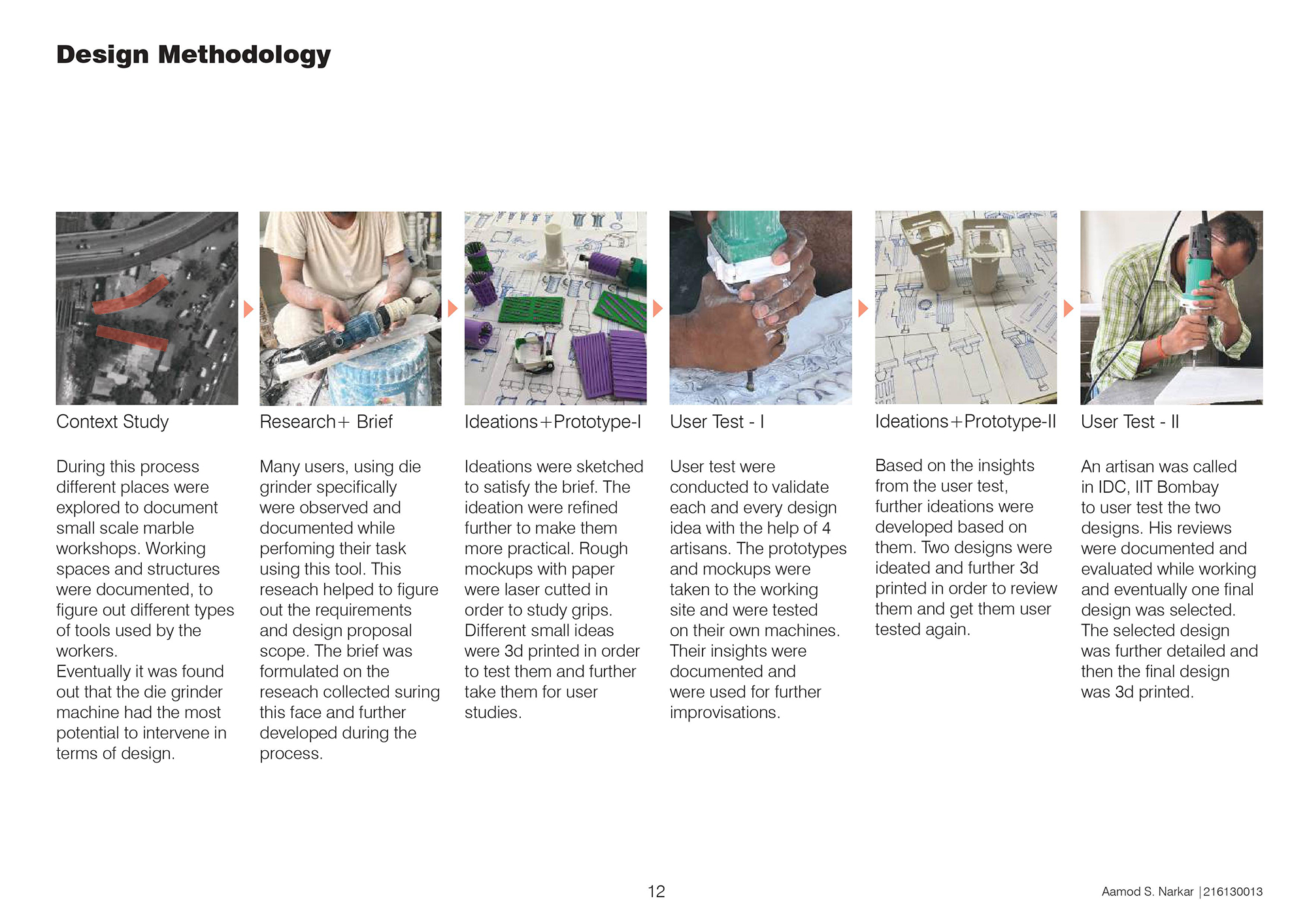

Design process that was followed in this project:

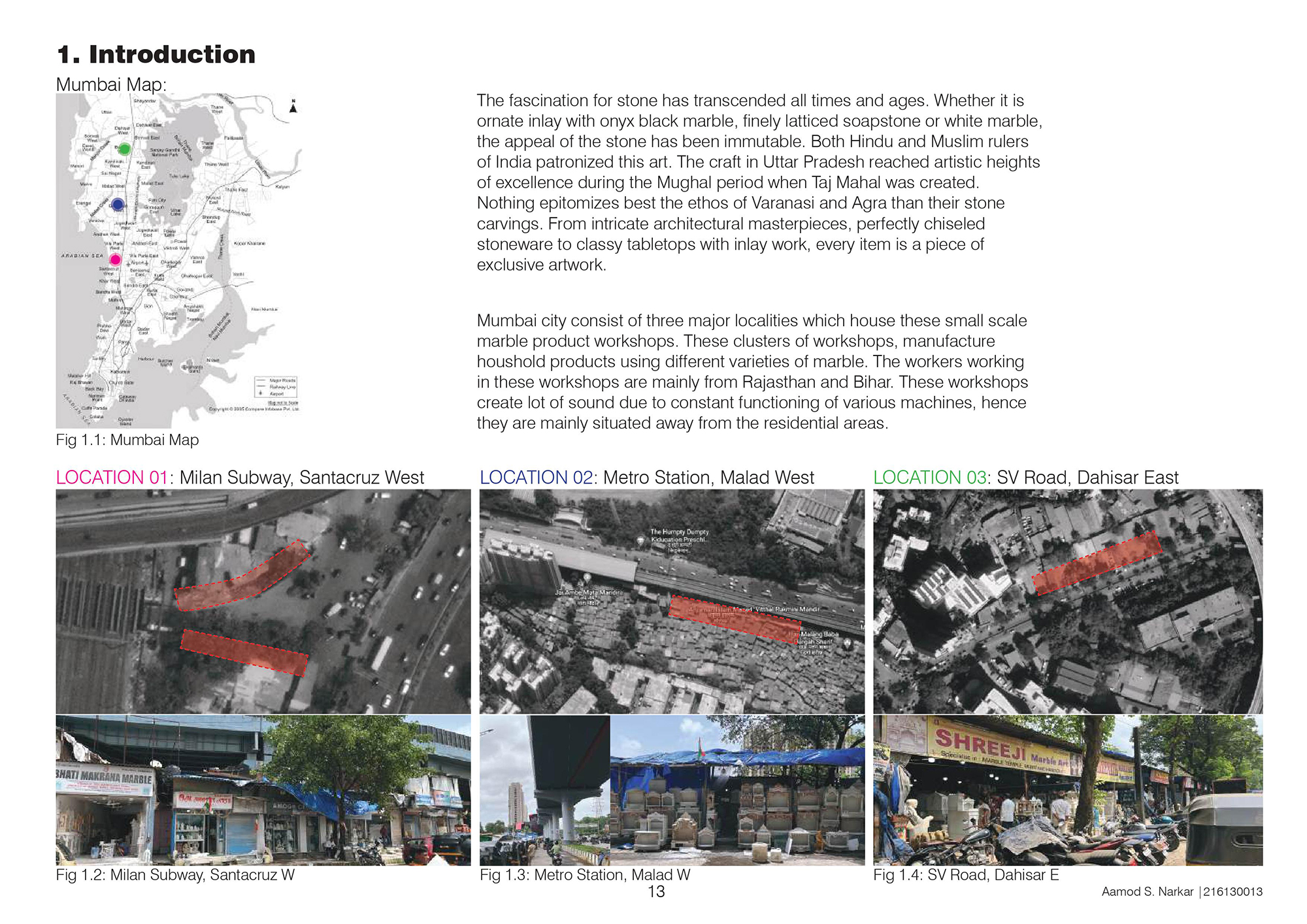

• Introduction
• Context Study

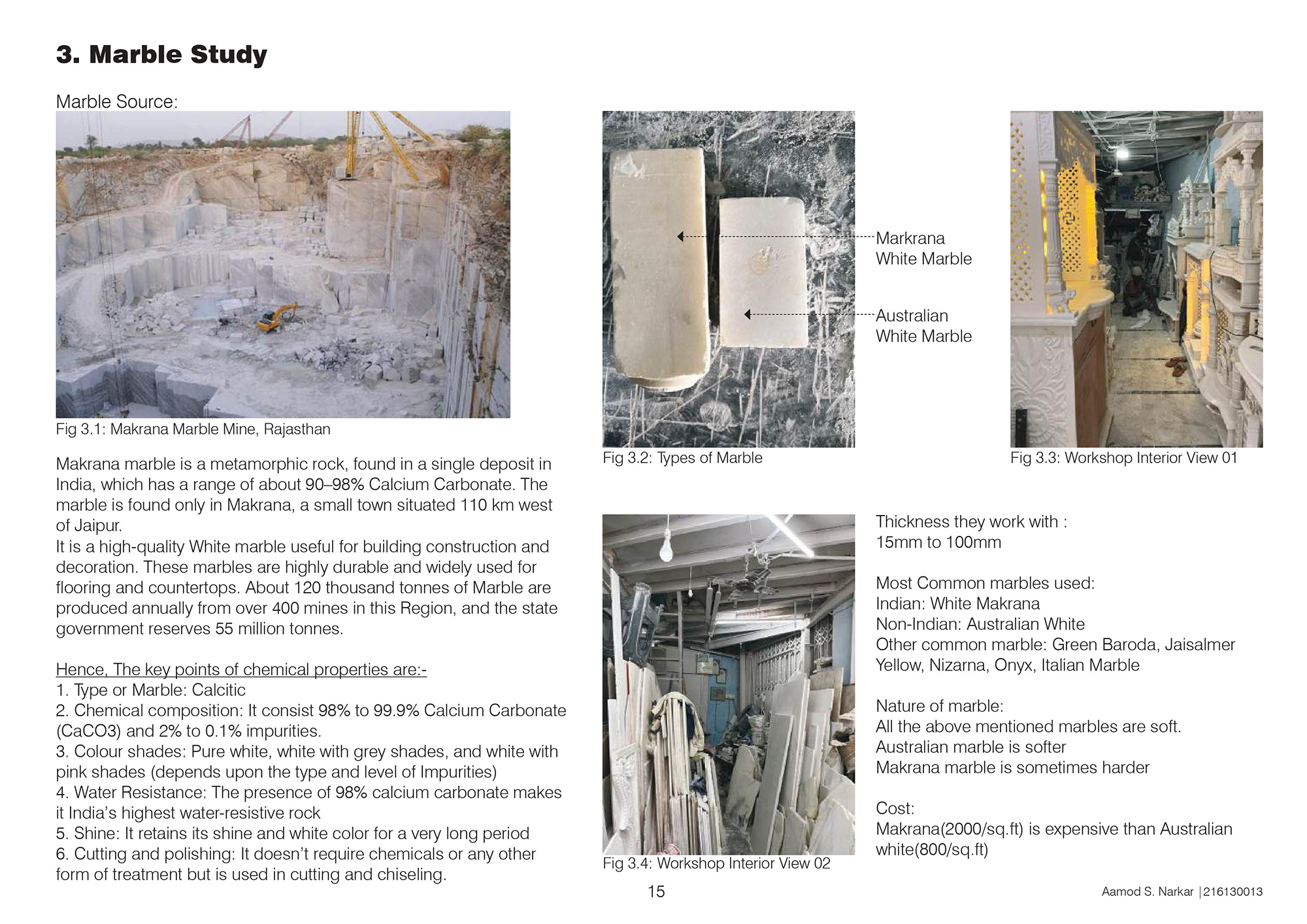

• Marble Study

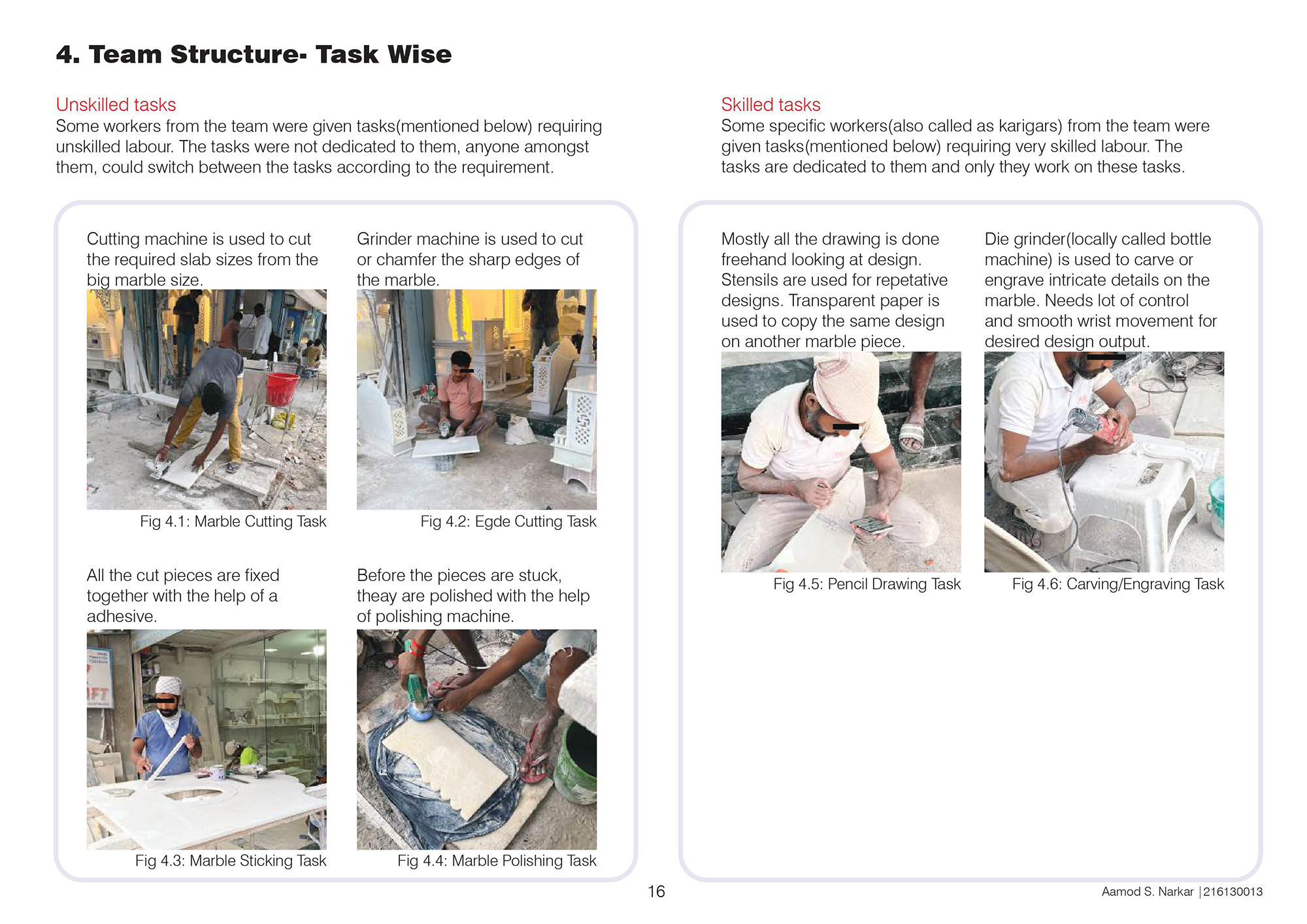

• Team Structure- Task Wise

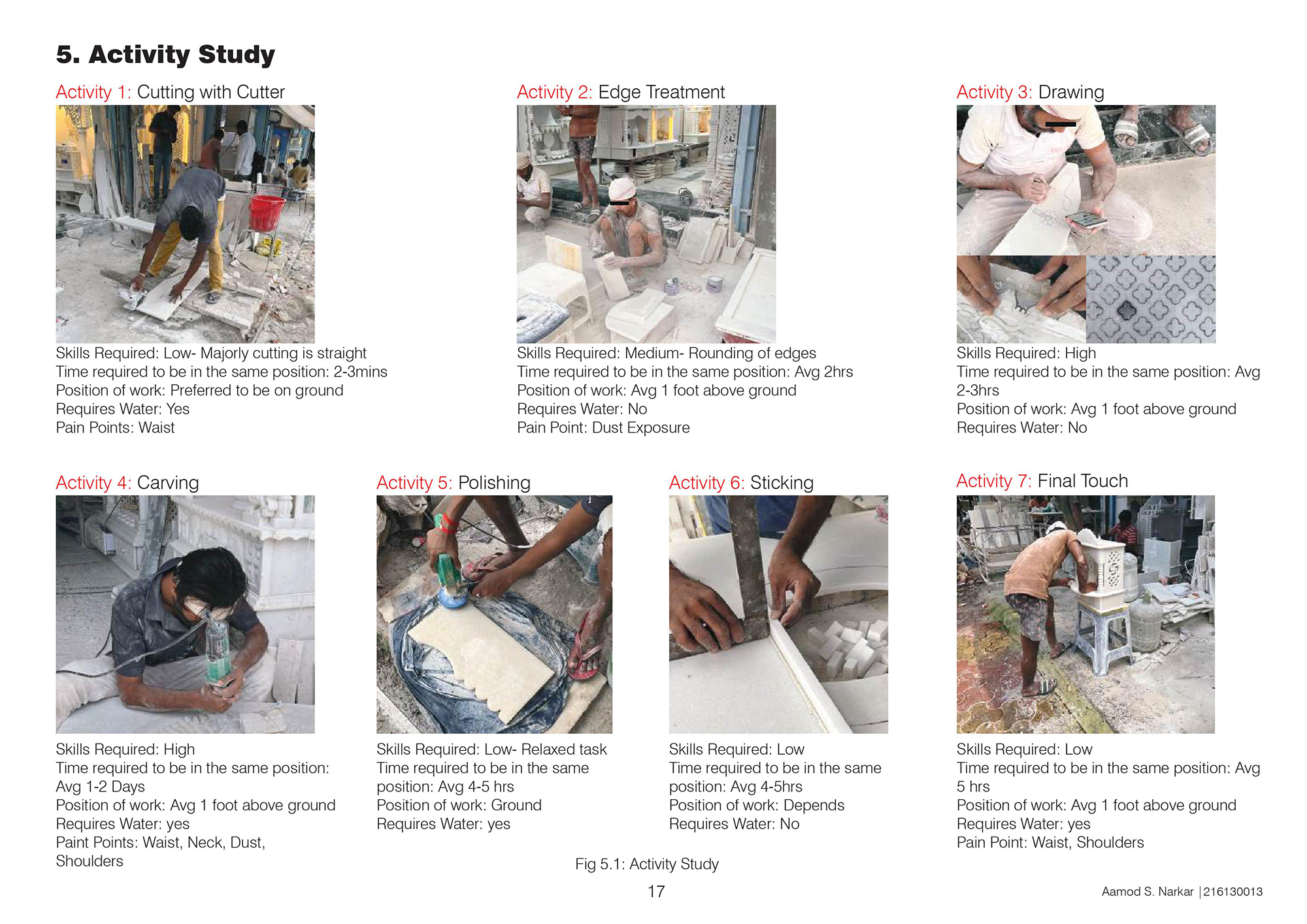

• Activity Study
• User Persona

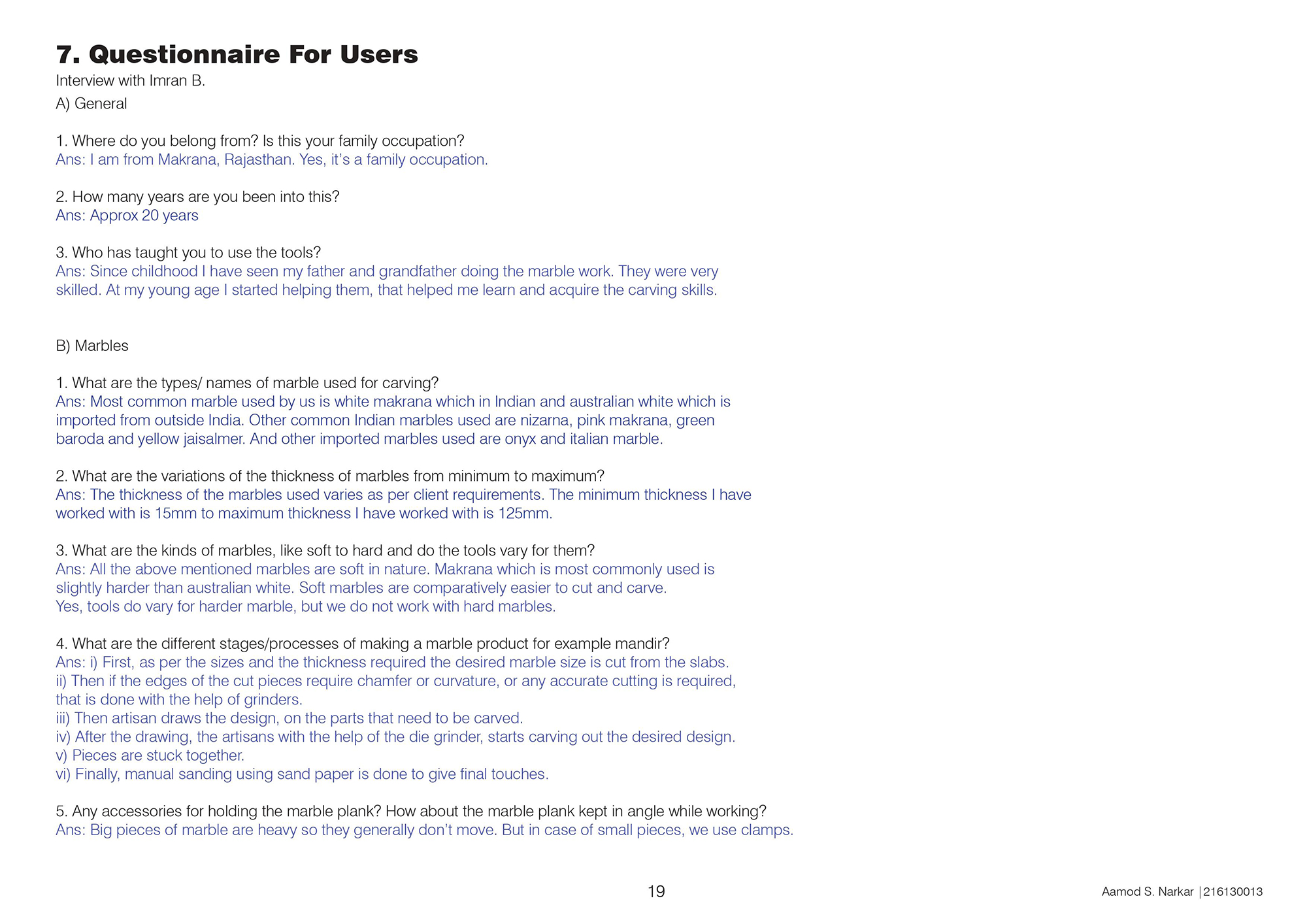

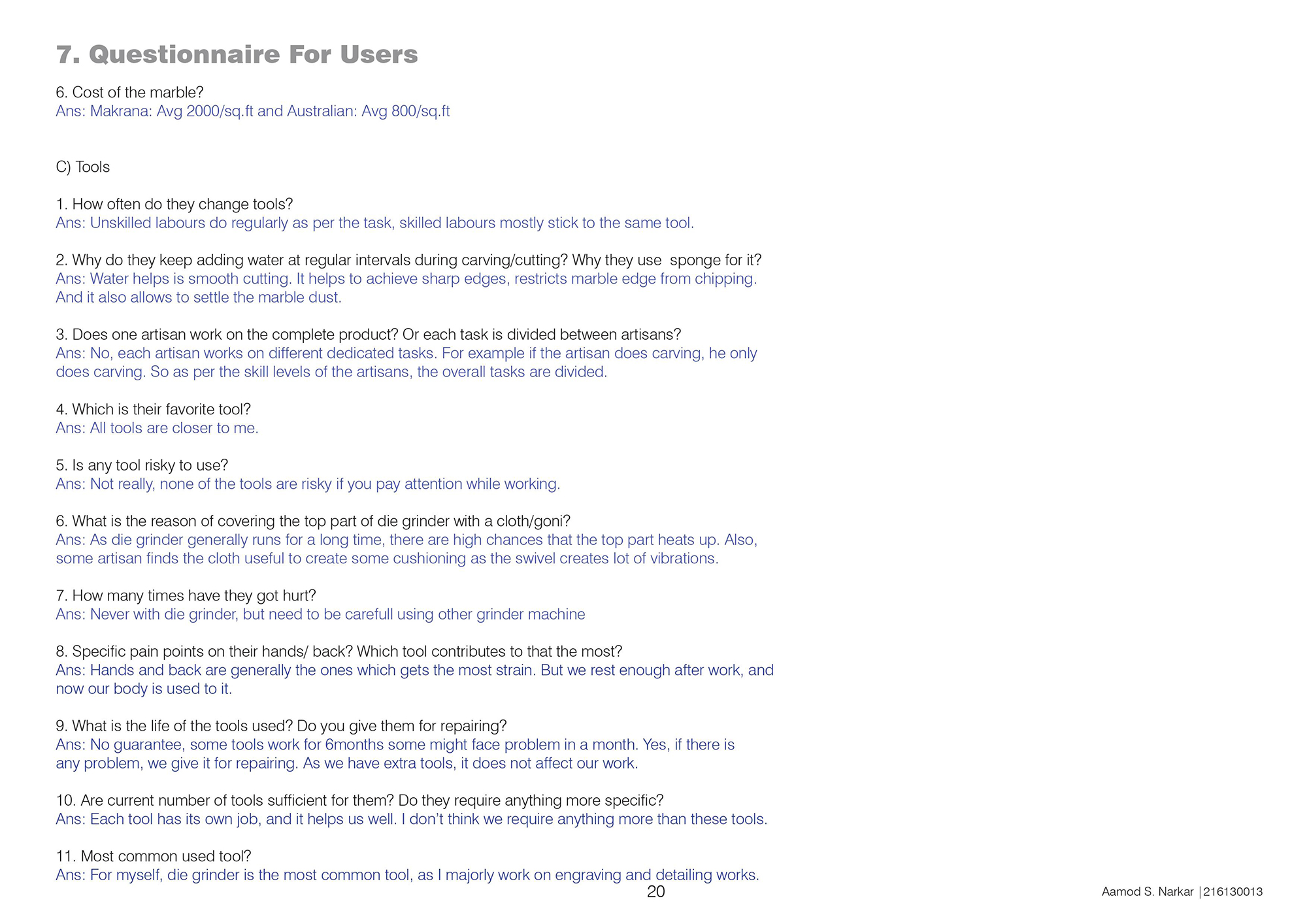

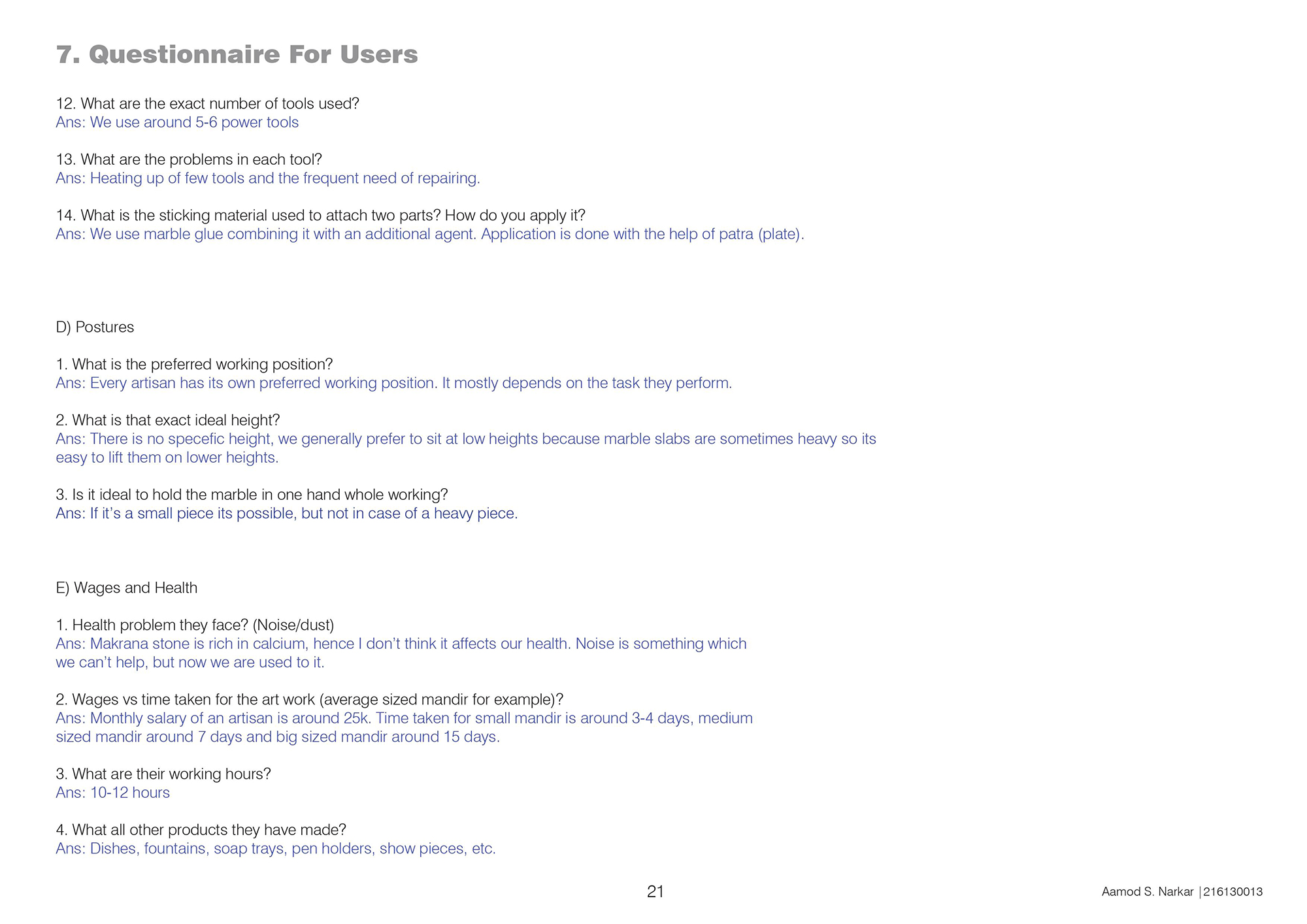

• Questionnaire For Users

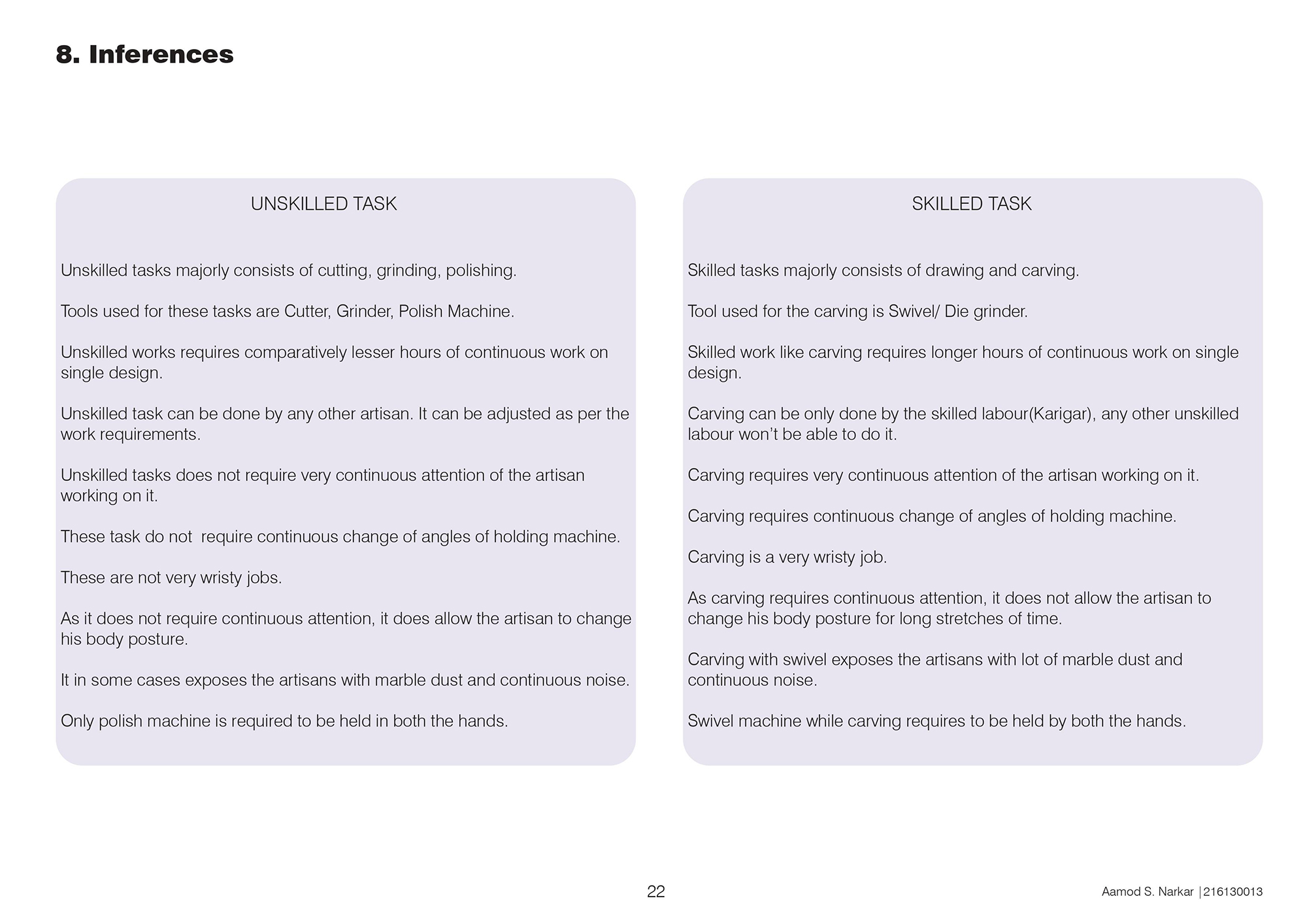

• Inferences

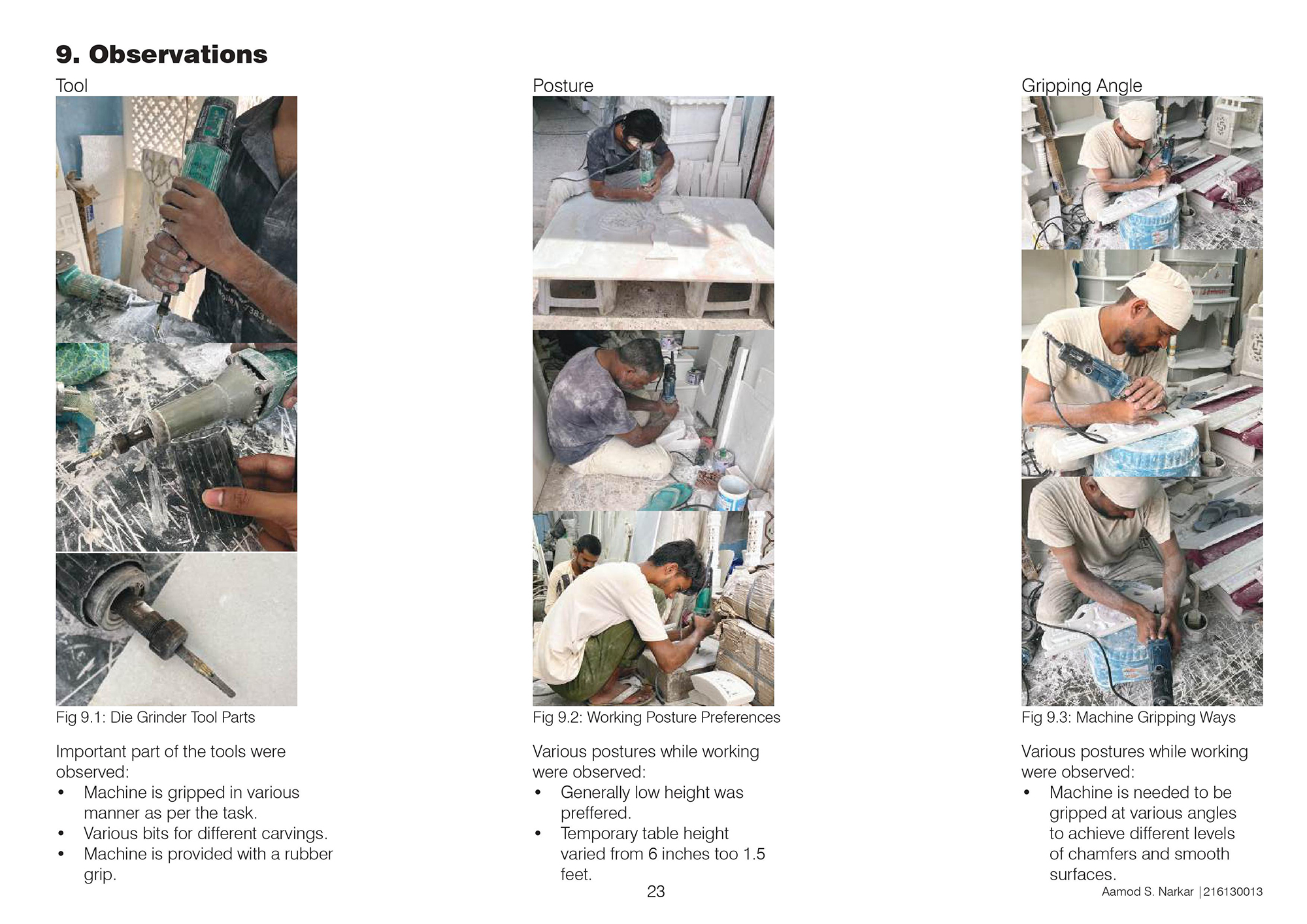

• Observations

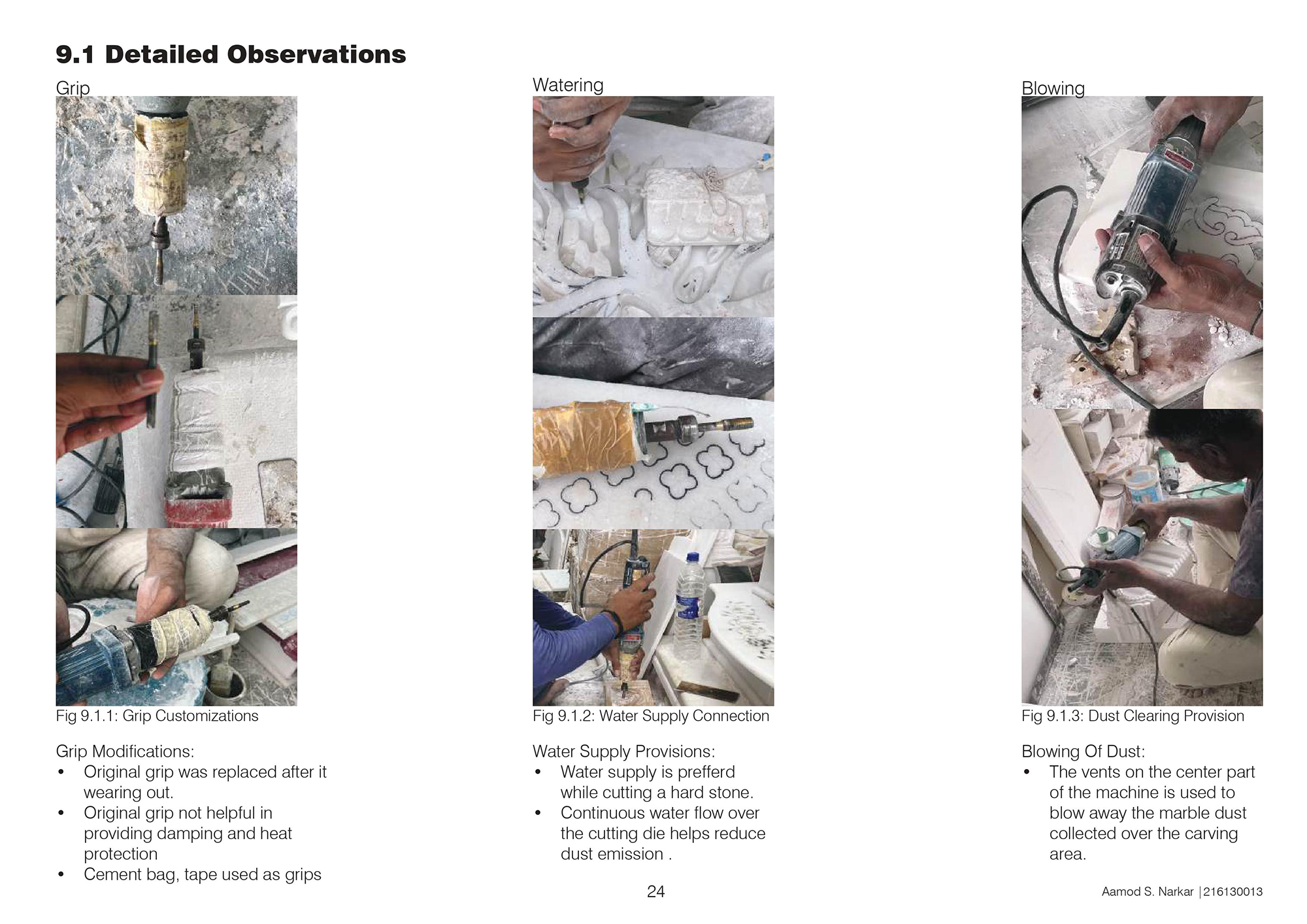

- Detailed Observations

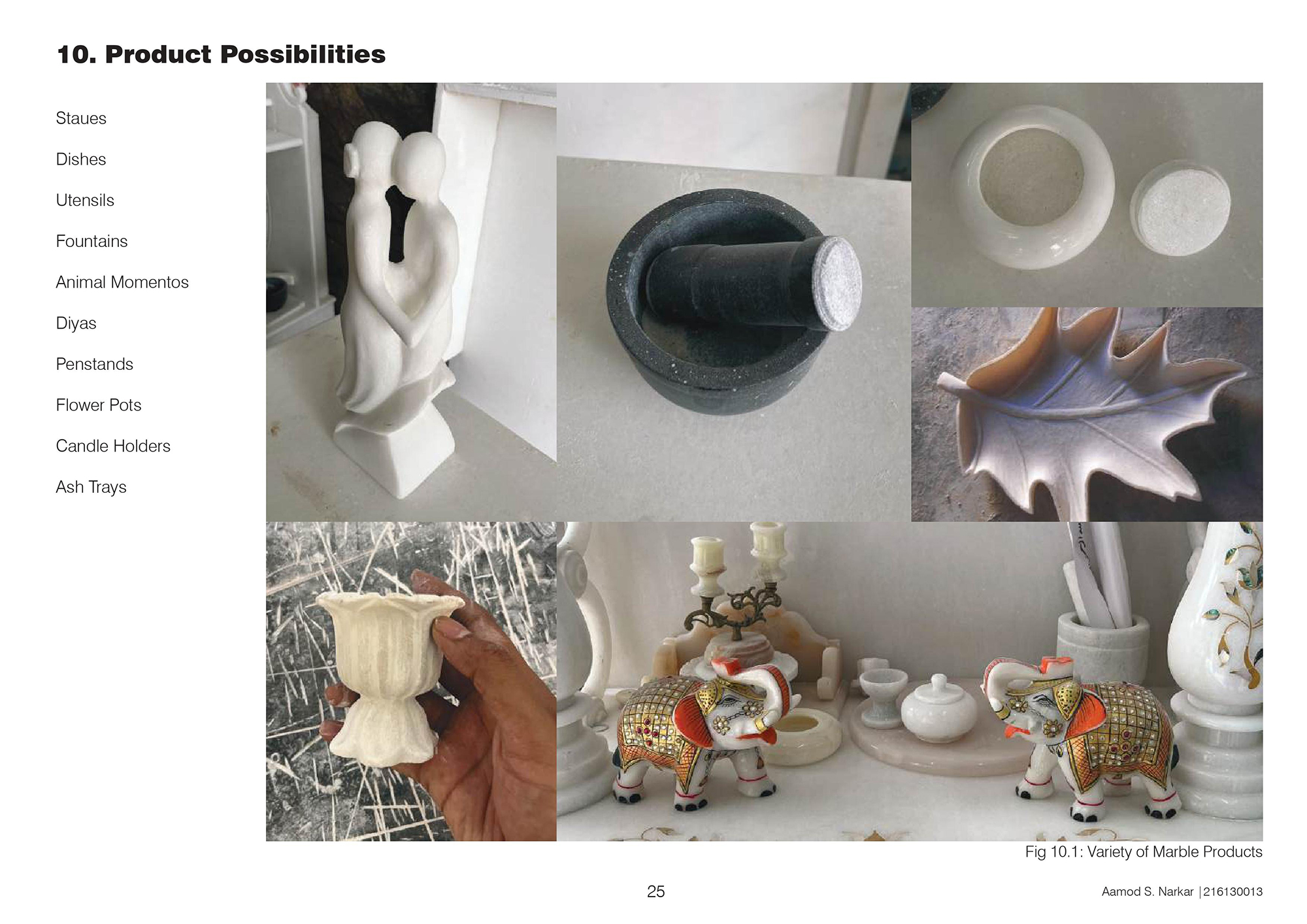

• Product Possibilities

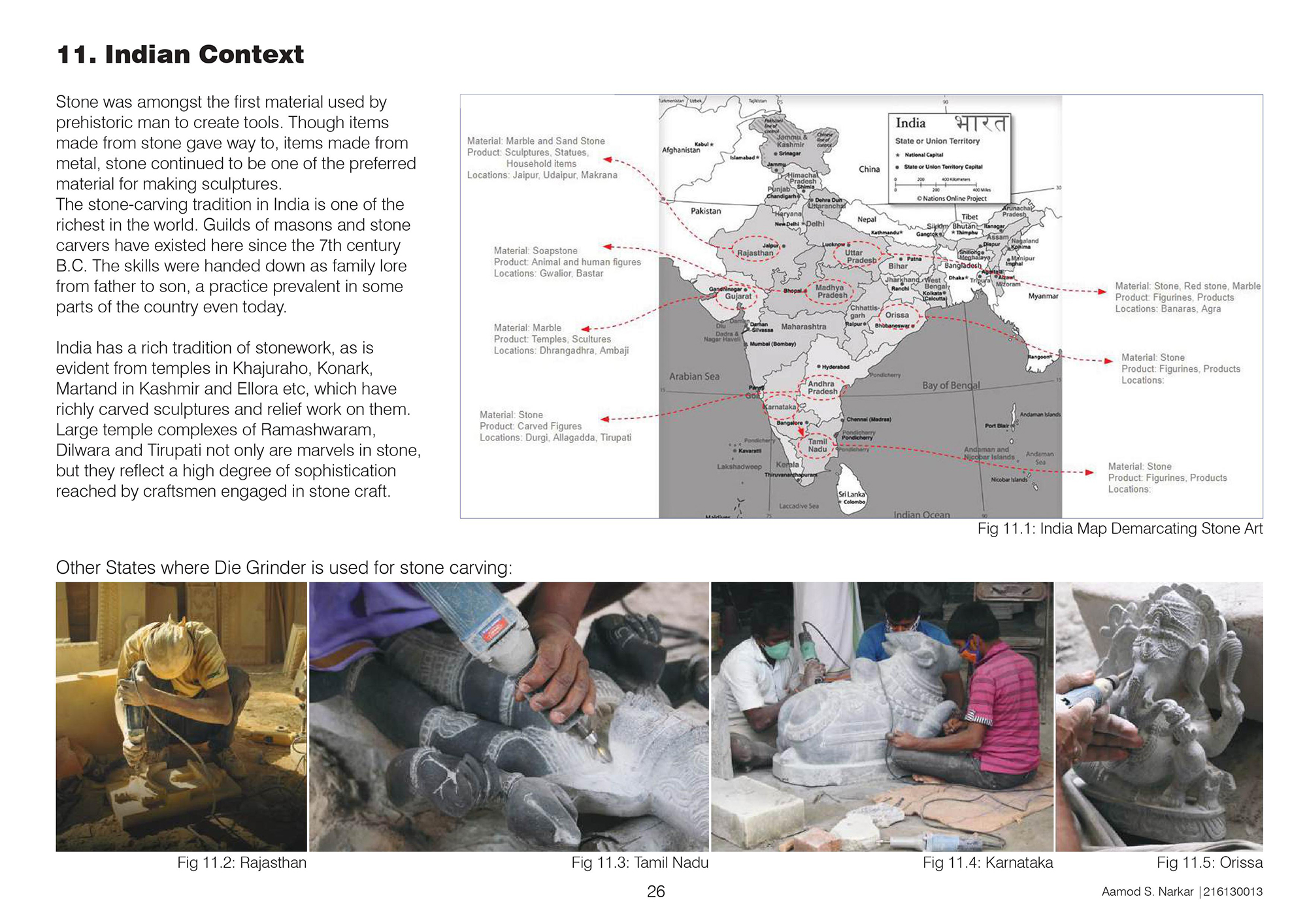

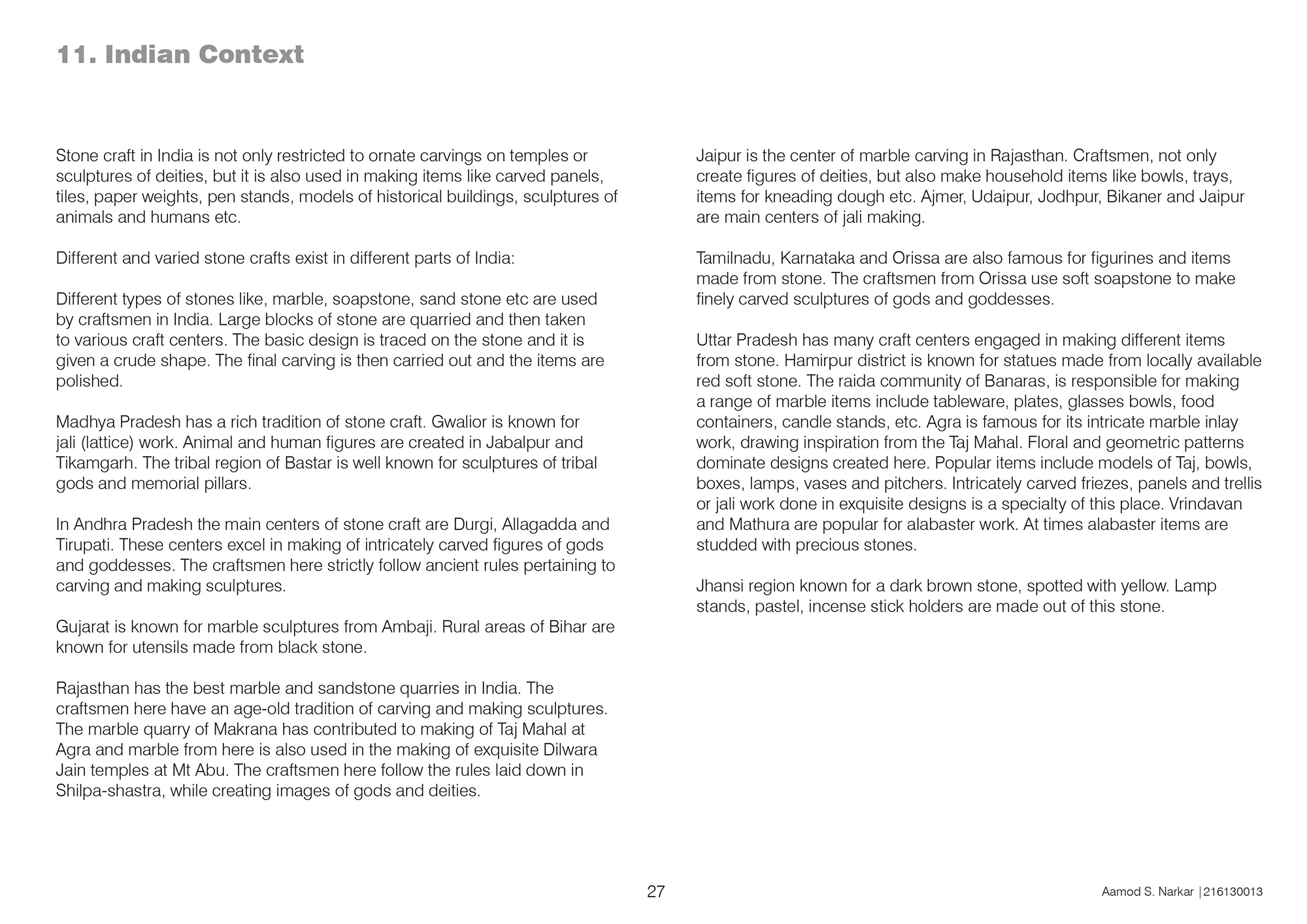

• Indian Context
- Stone Art Work
- Cutting The Stone

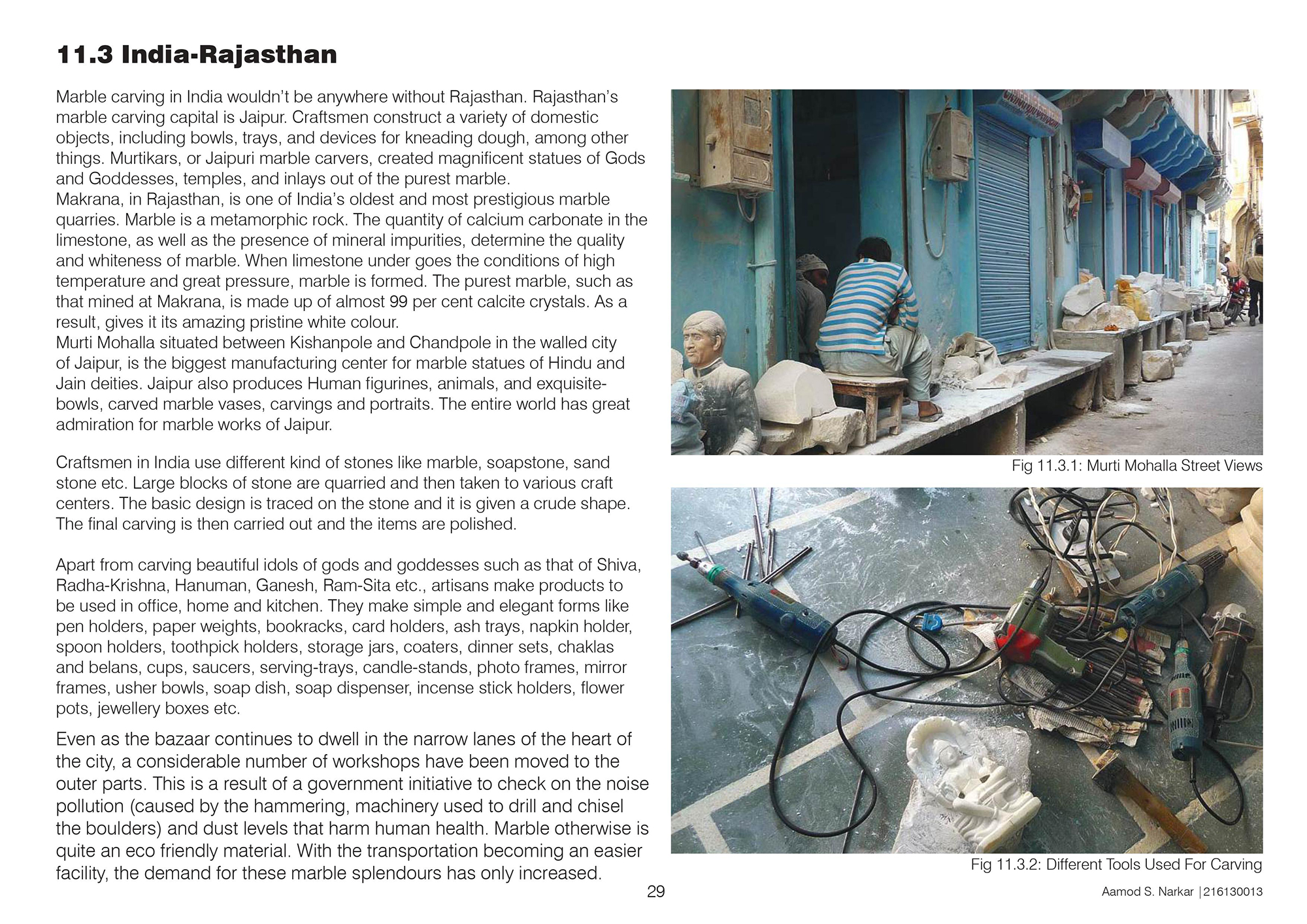

- India-Rajasthan
- Clusters - Kishangarh

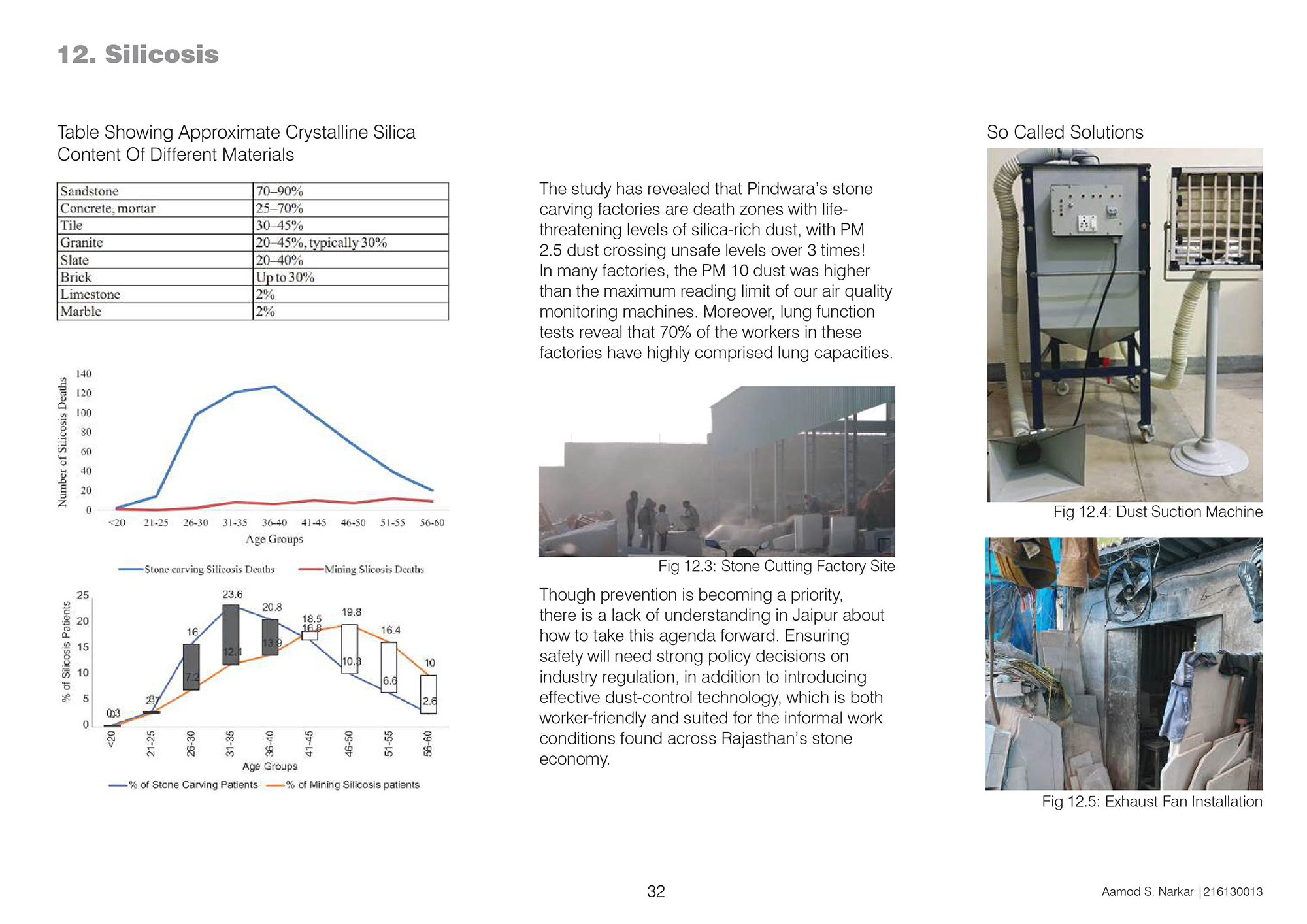

• Silicosis
• Understanding Scenario in Tier 1 Cities
• Machine Specifications

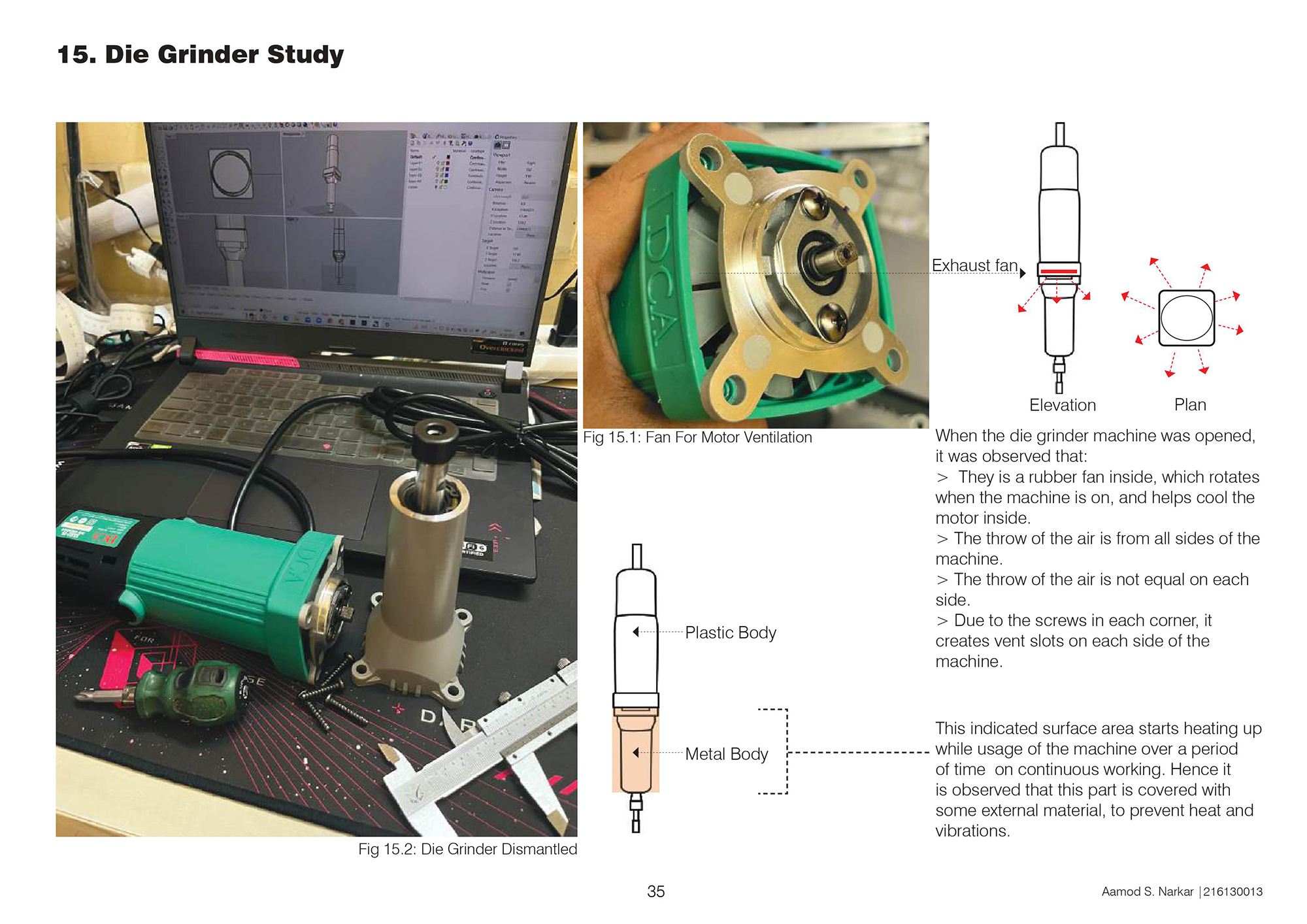

• Die Grinder Study

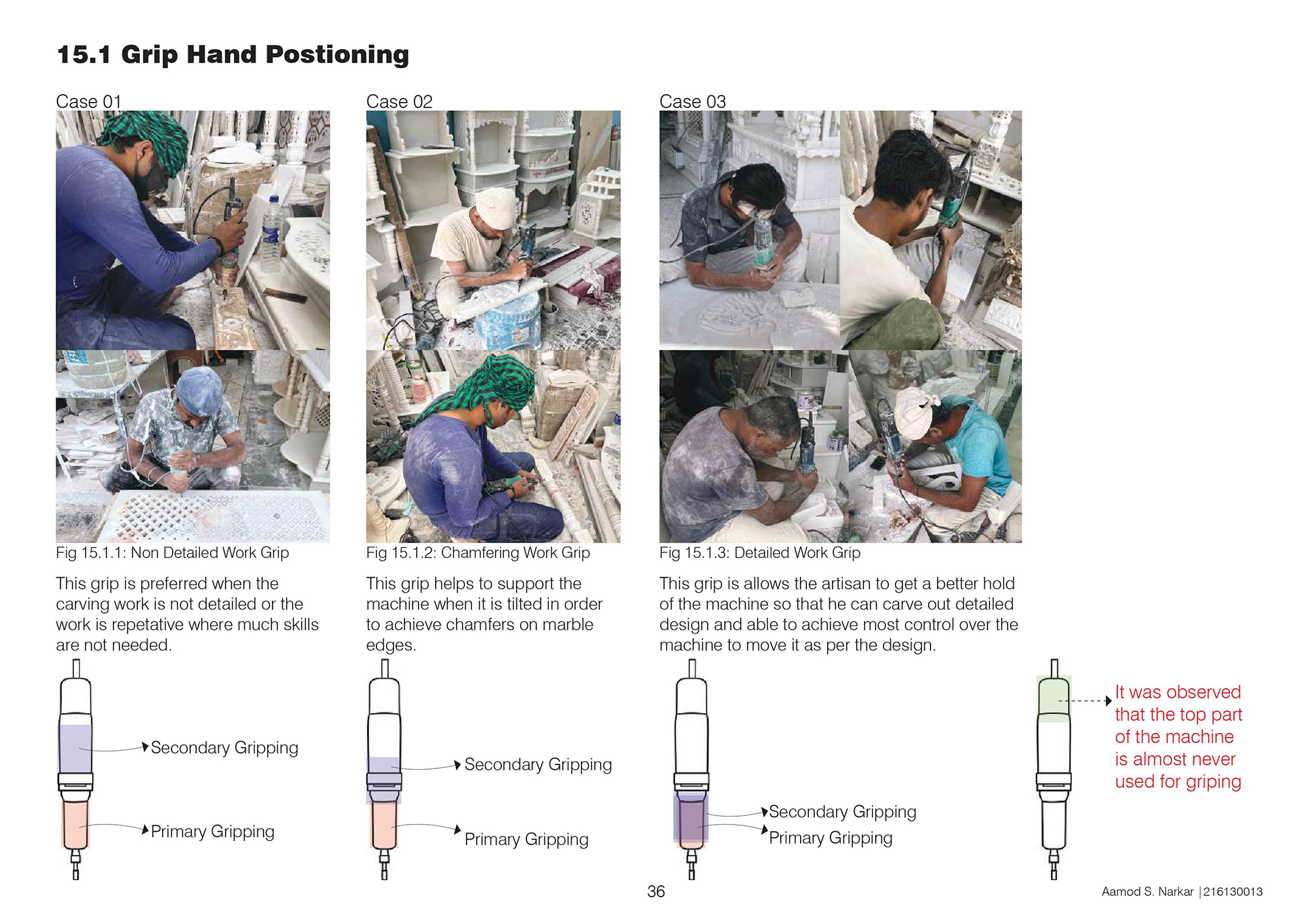

- Grip Hand Positioning
- Machine Working Angles

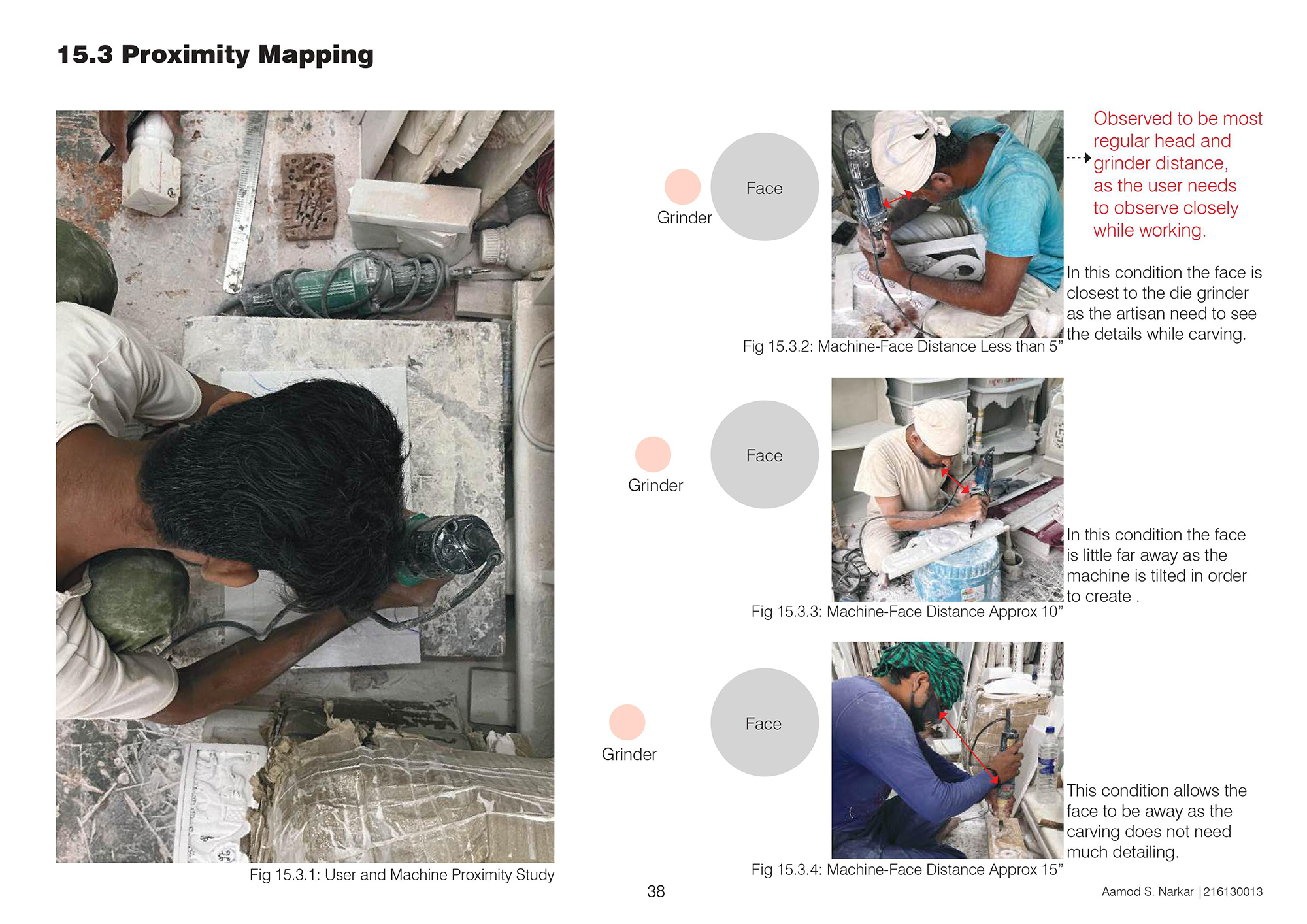

- Proximity Mapping

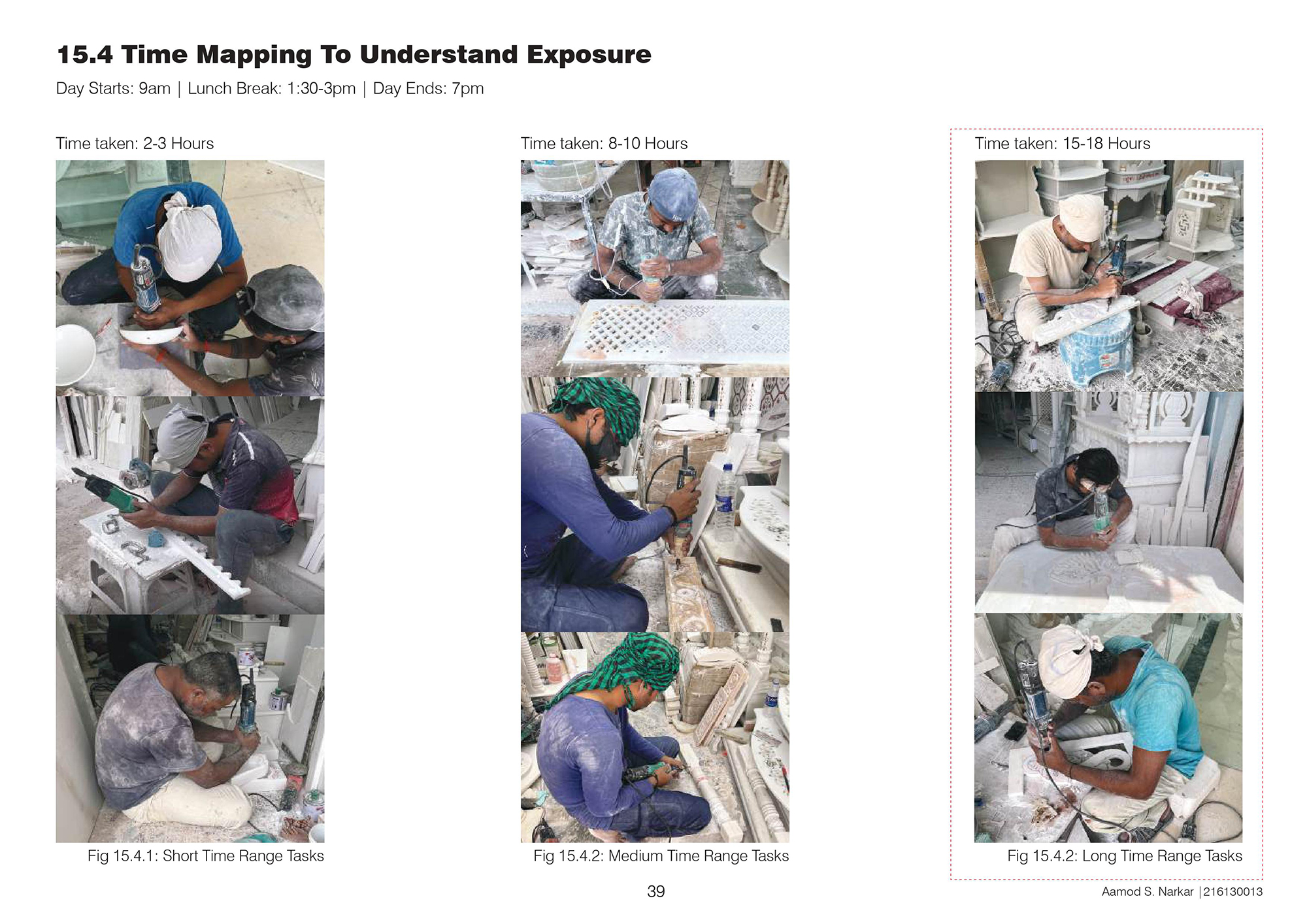

- Time Mapping to Understand Exposure
- Dust Emission Study

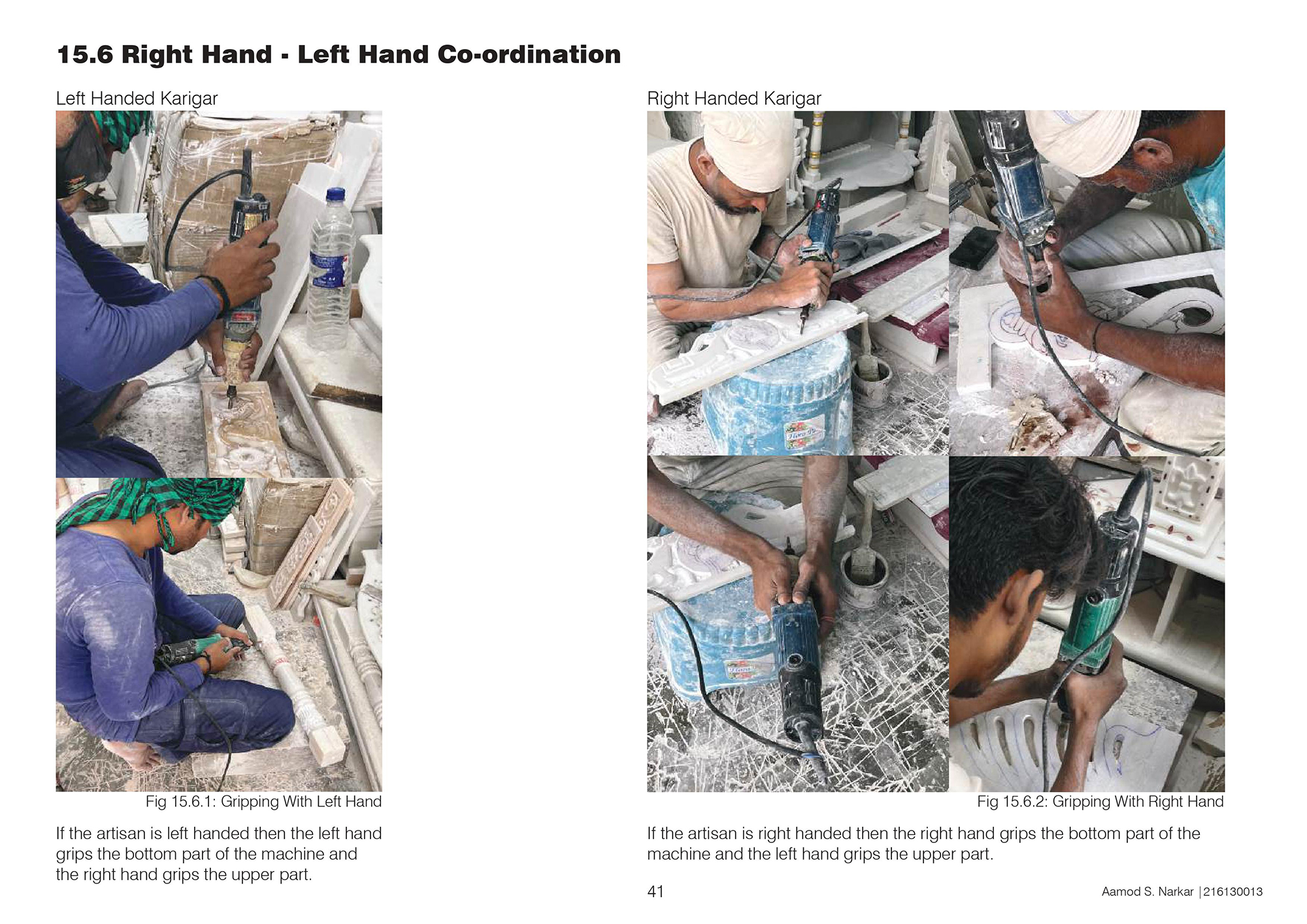

- Right HAnd-Left Hand Co-ordination

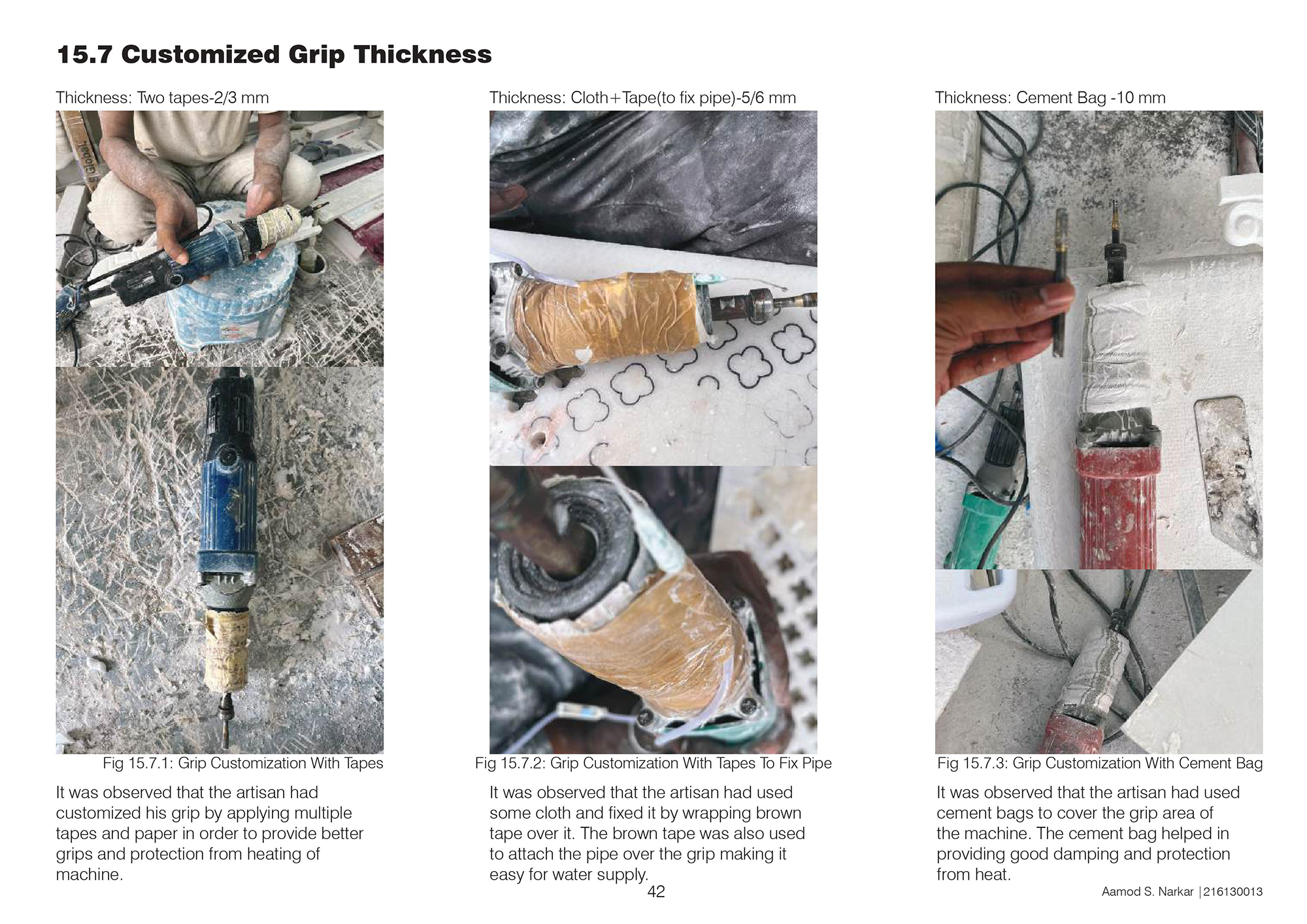

- Customized Grip Thickness

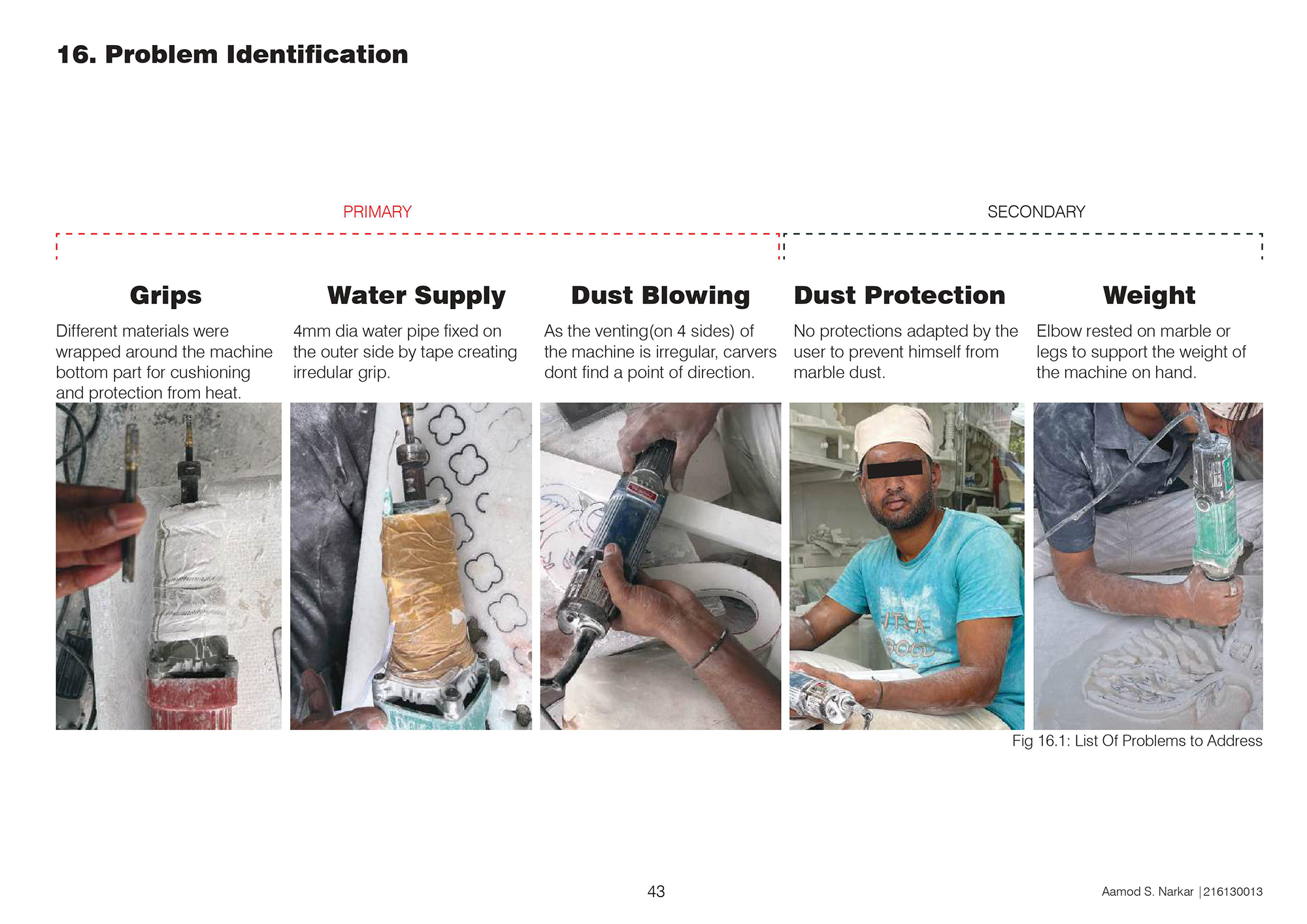

• Problem Identifications

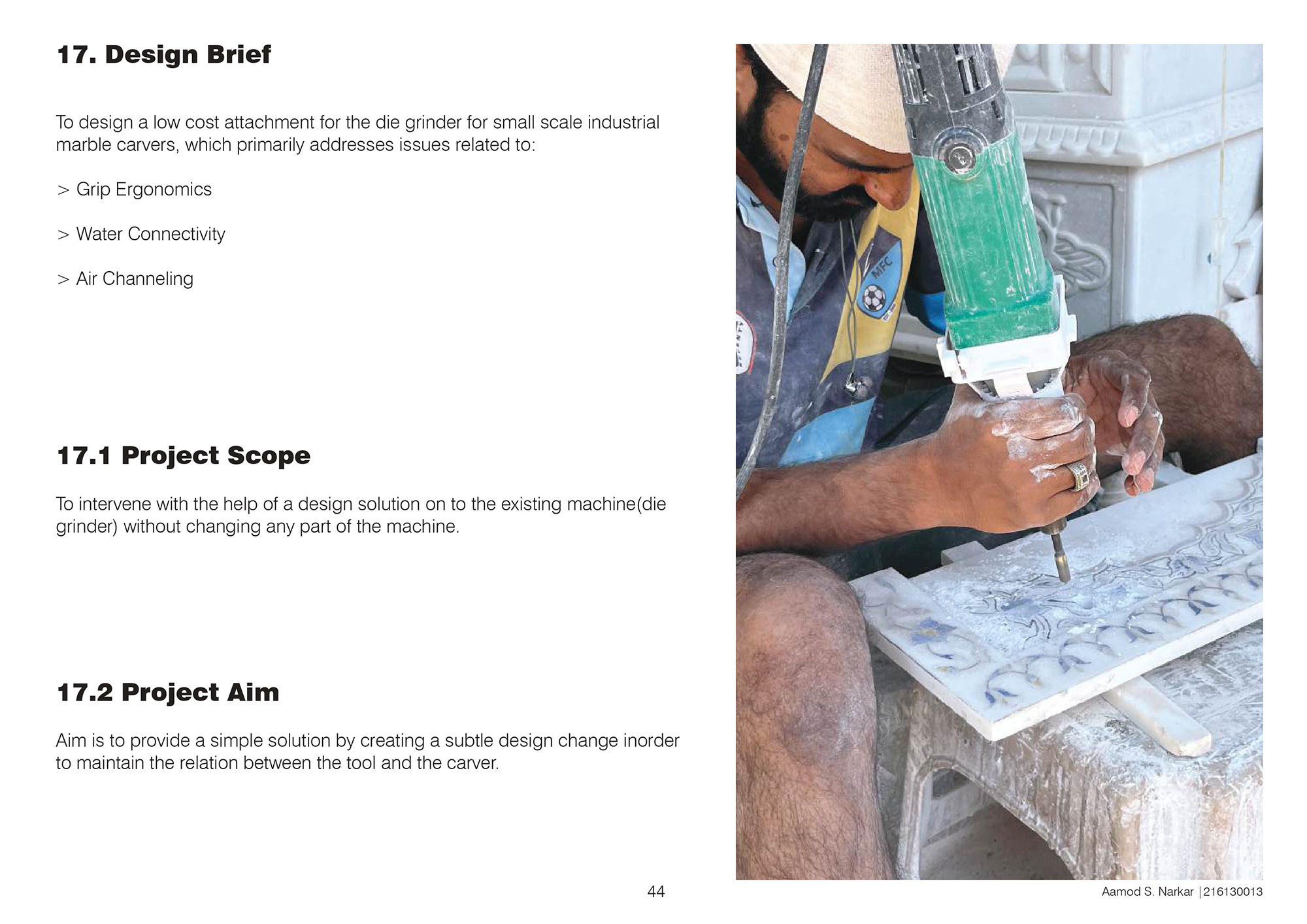

• Design Brief
- Project Scope
- Project Aim

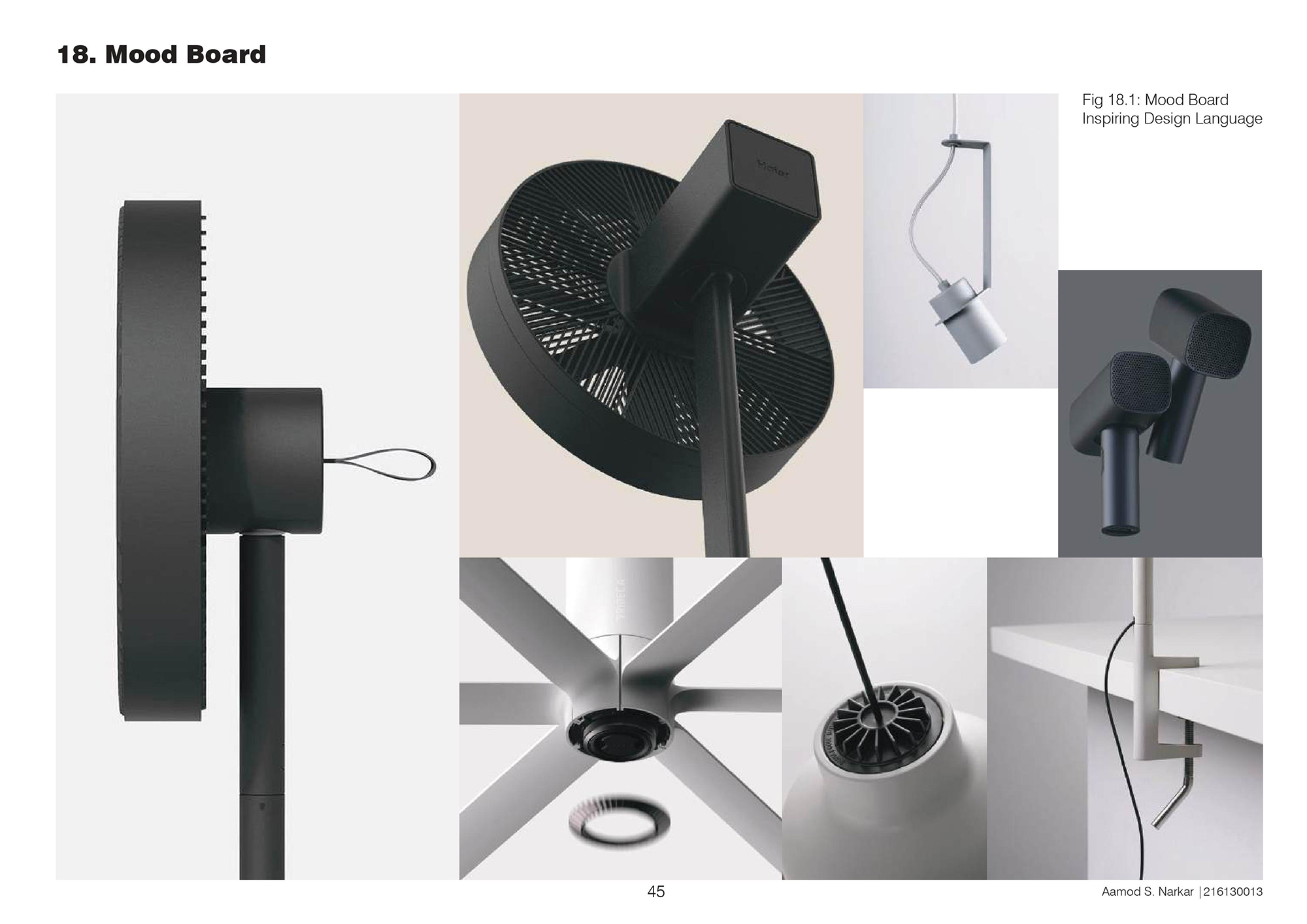

• Mood Board

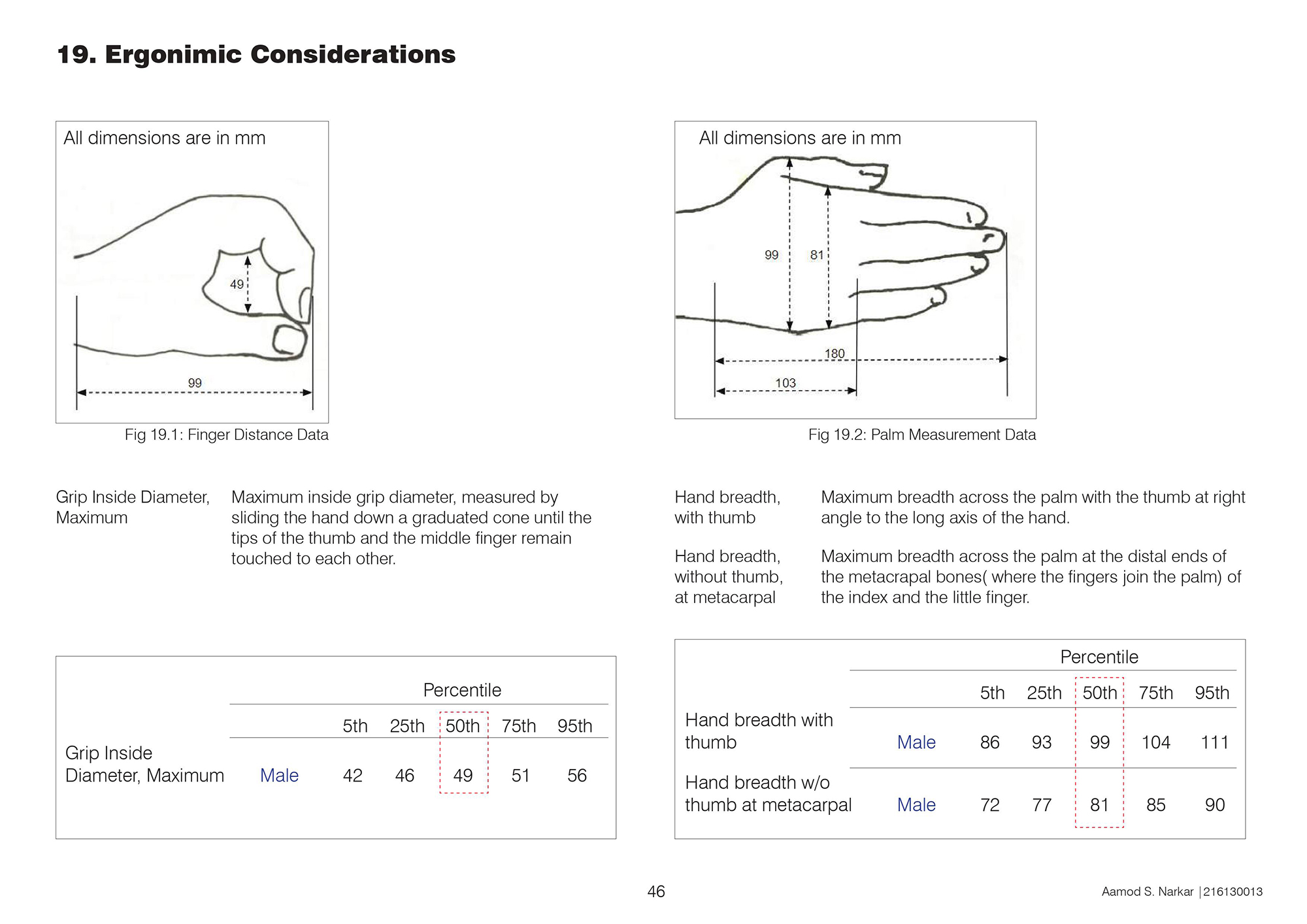

• Ergonomic Considerations

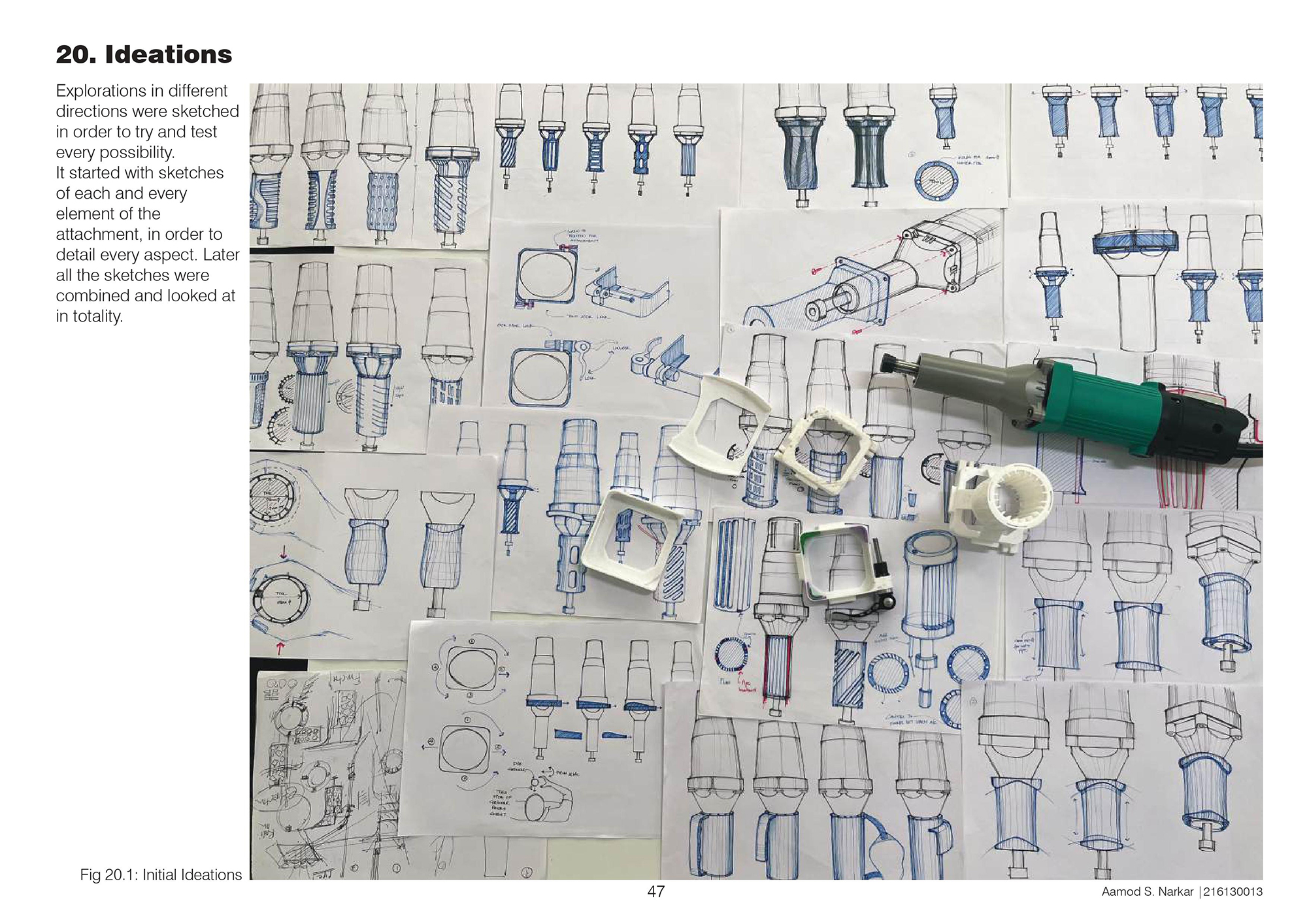

• Ideations

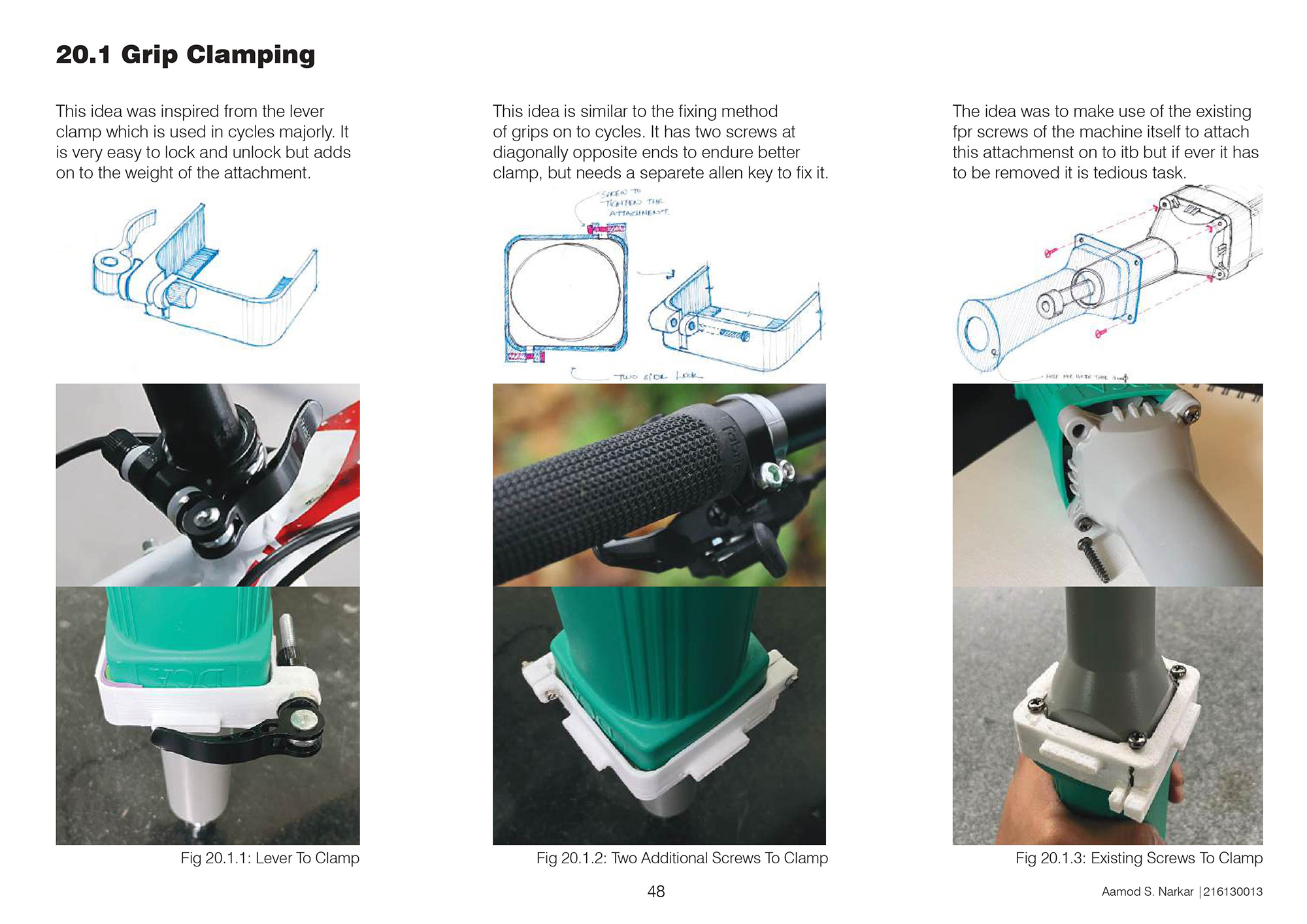

- Grip Clamping

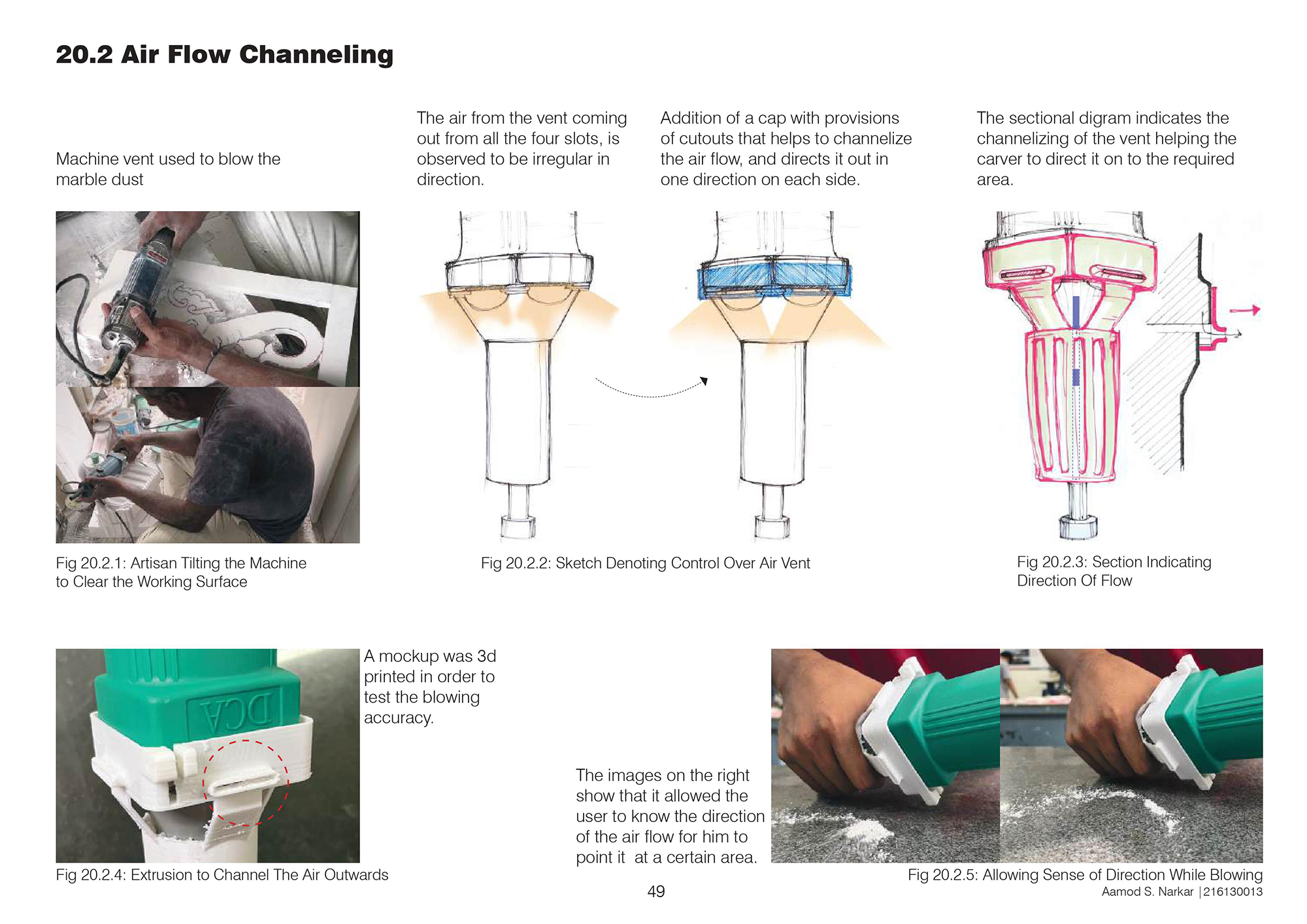

- Air Flow Channeling

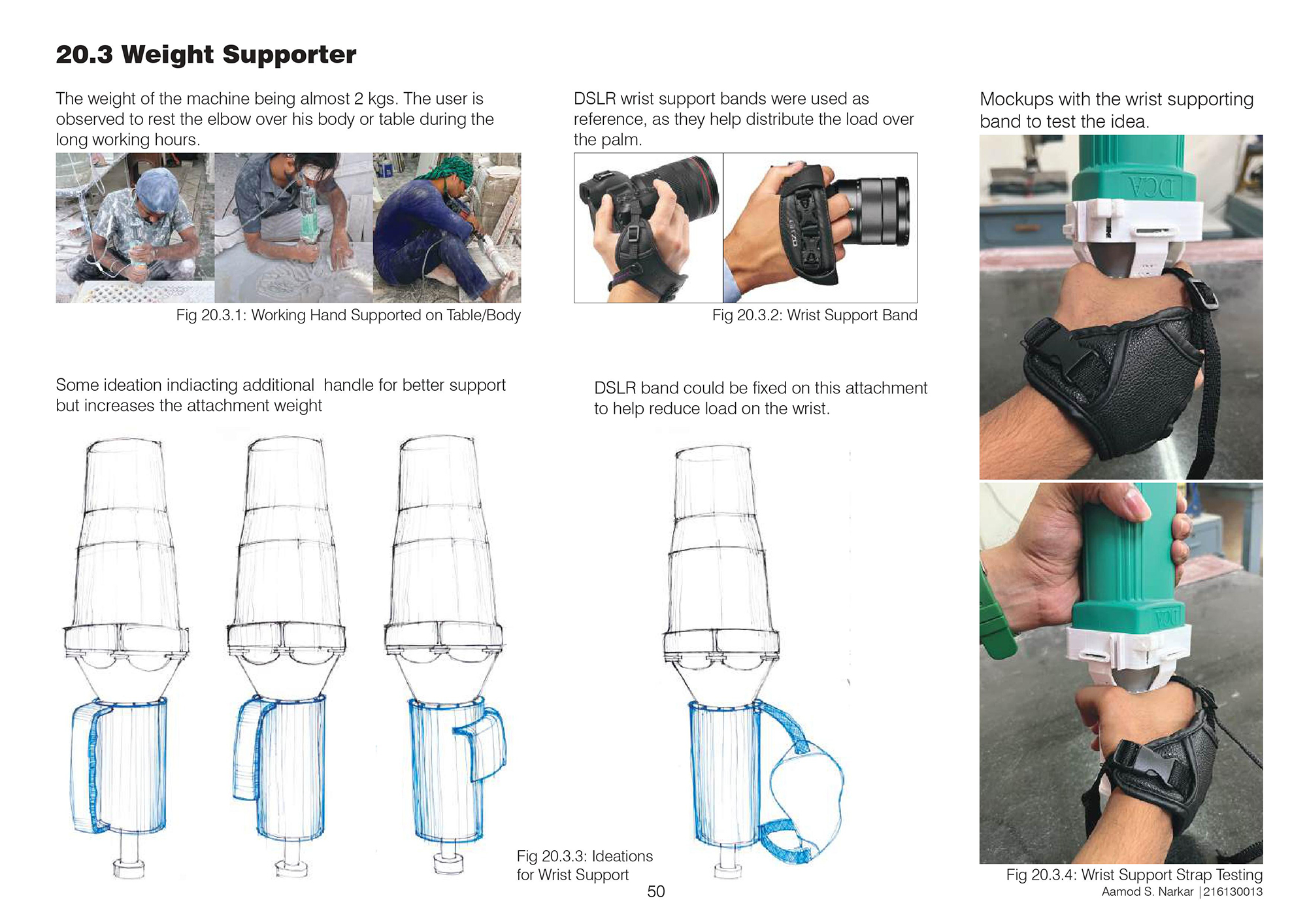

- Weight Supporter

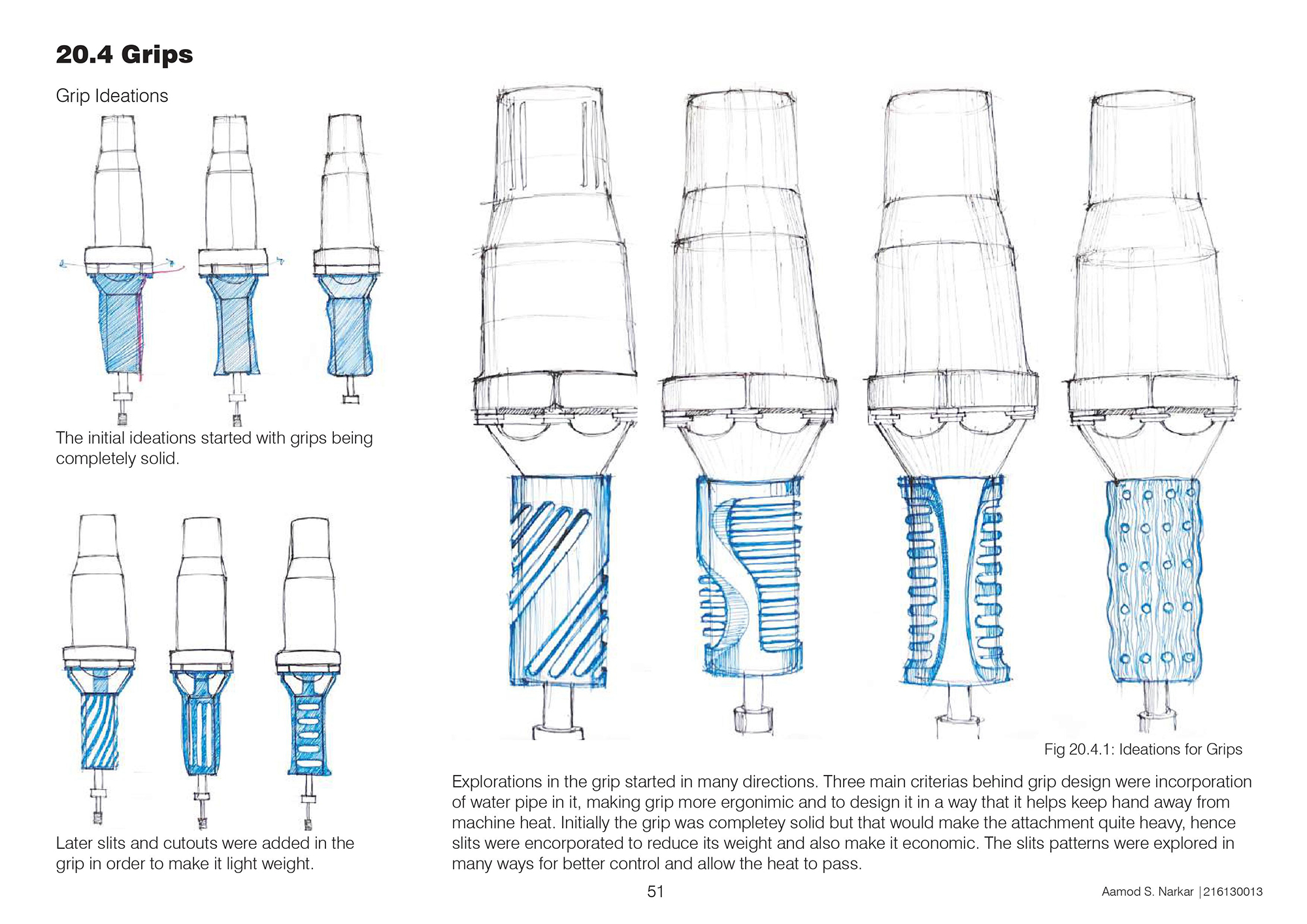

- Grips

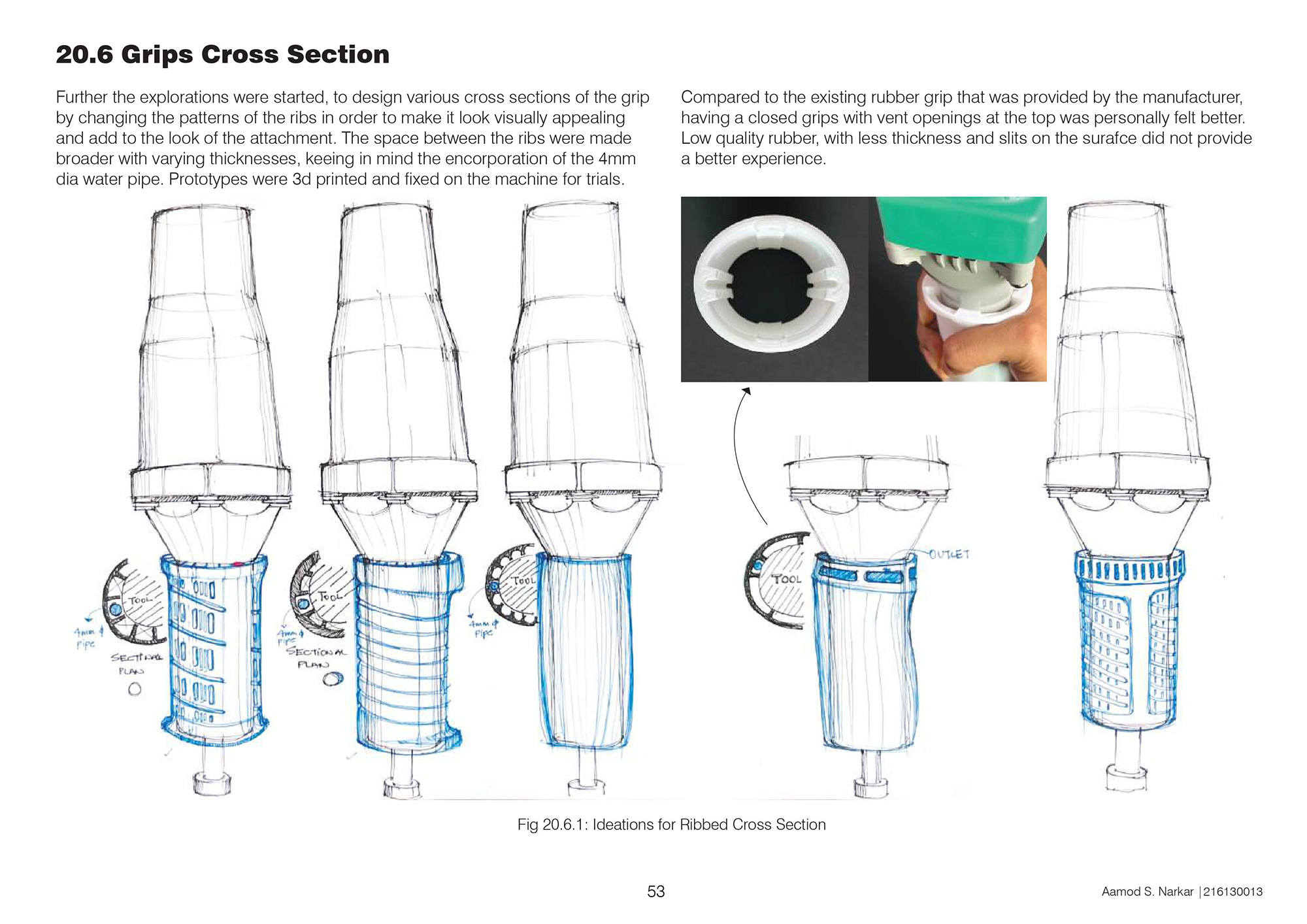

- Grip Cross Section
- Grip Cross Section
- Water Connectivity
- Grips

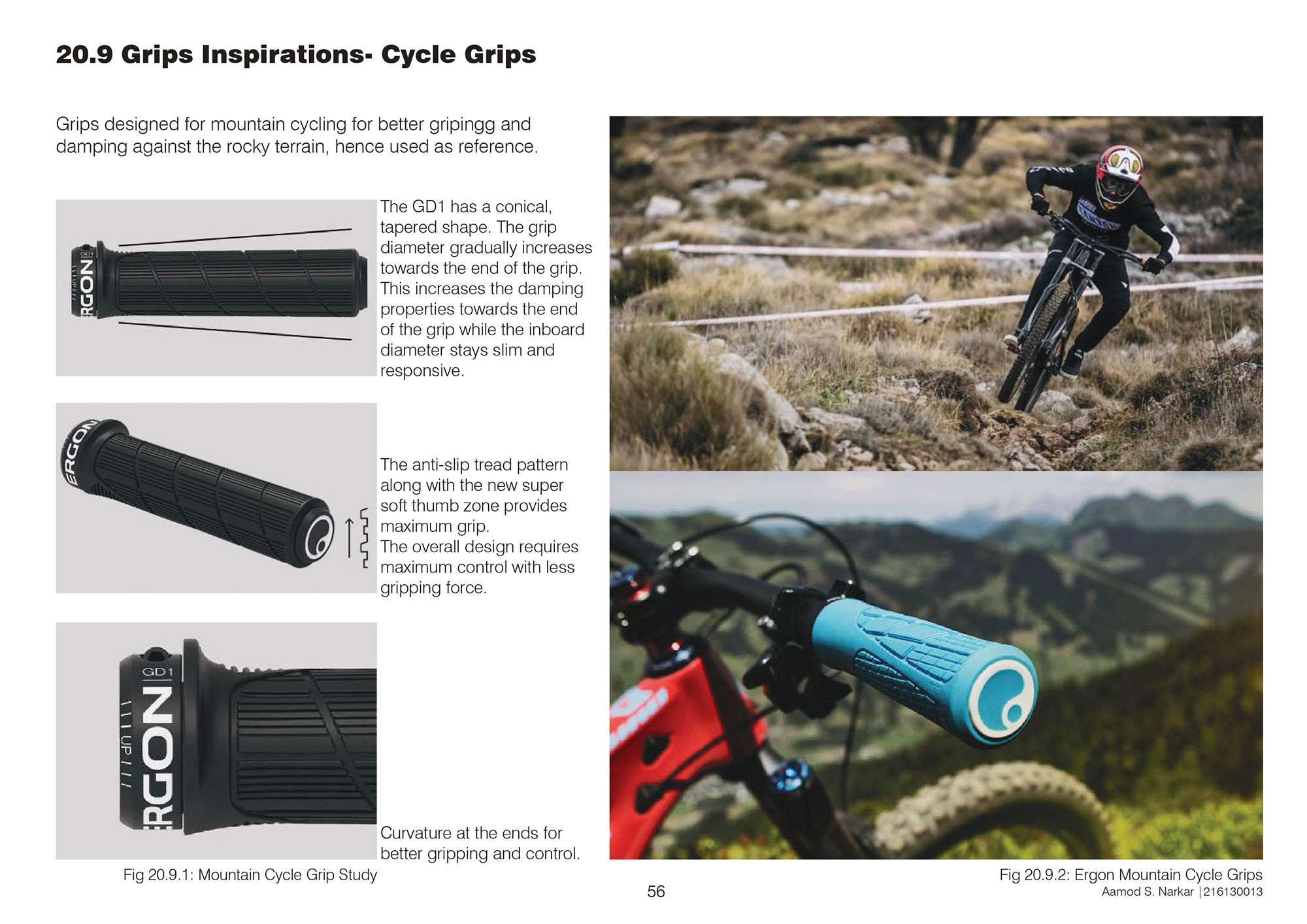

- Grips Inspiration- Cycle grip

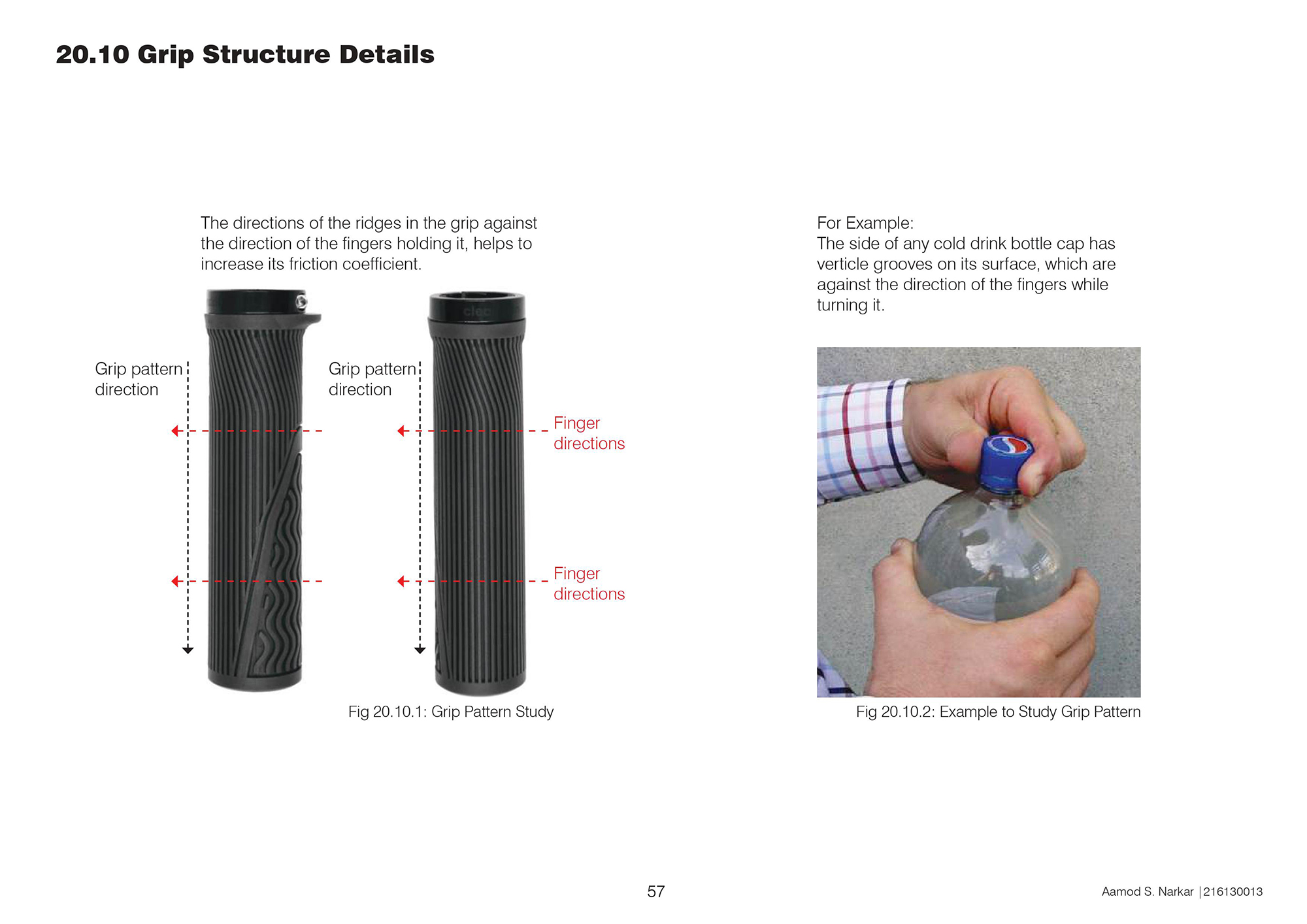

- Grip Structure Detail

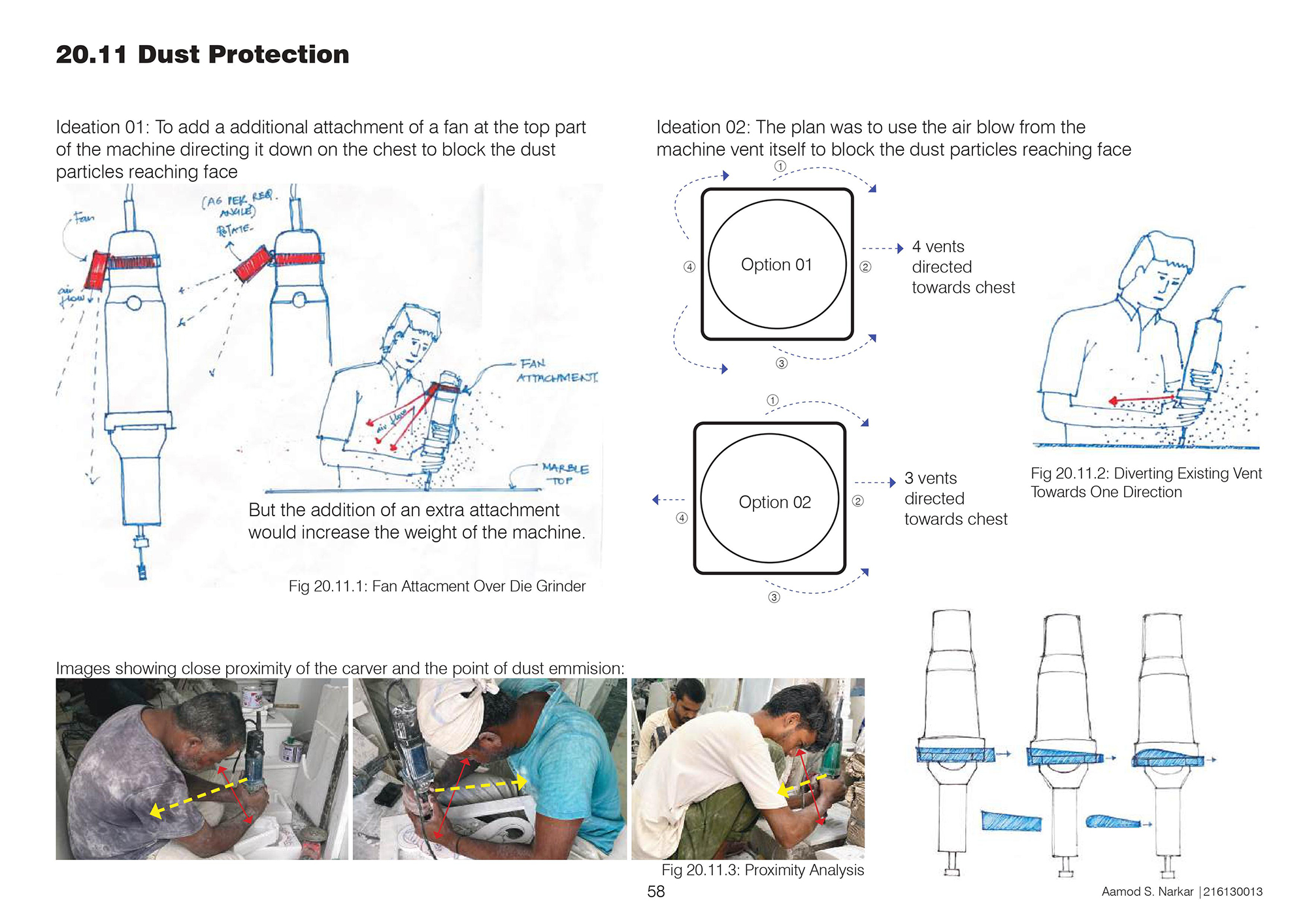

- Dust Protection
- Dust Protection Testing

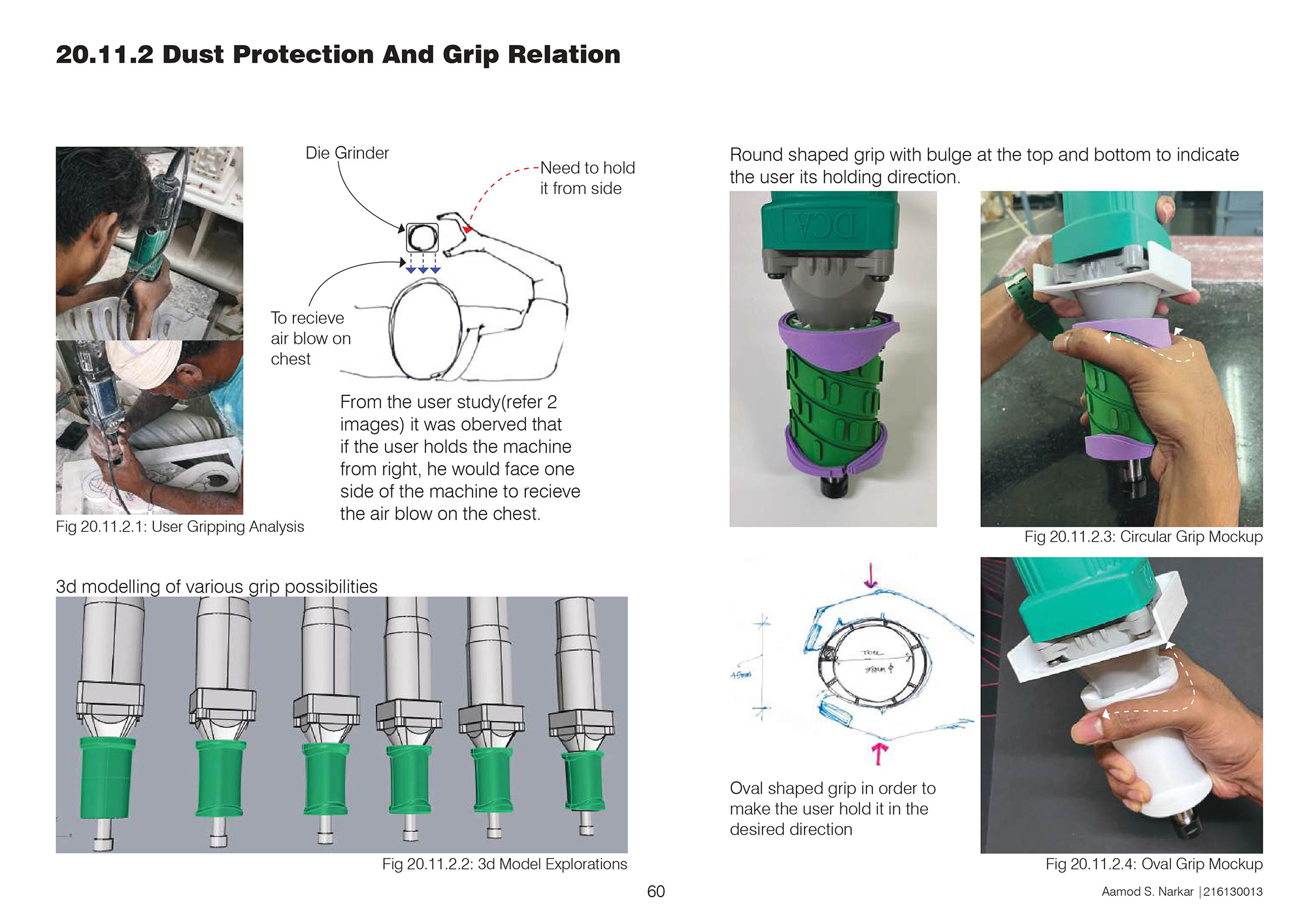

- Dust Protection and Grip Relation

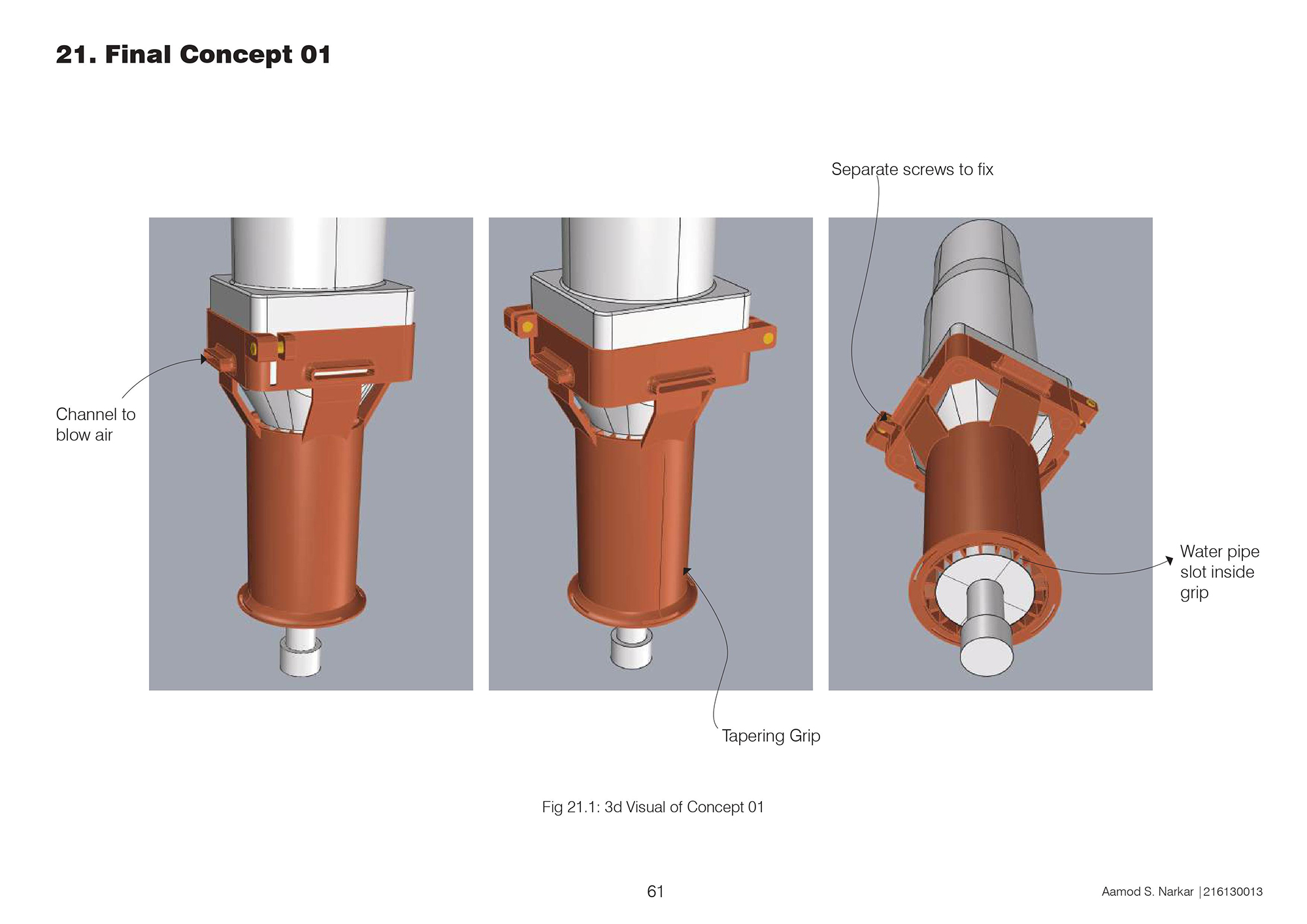

• Final Concept 01

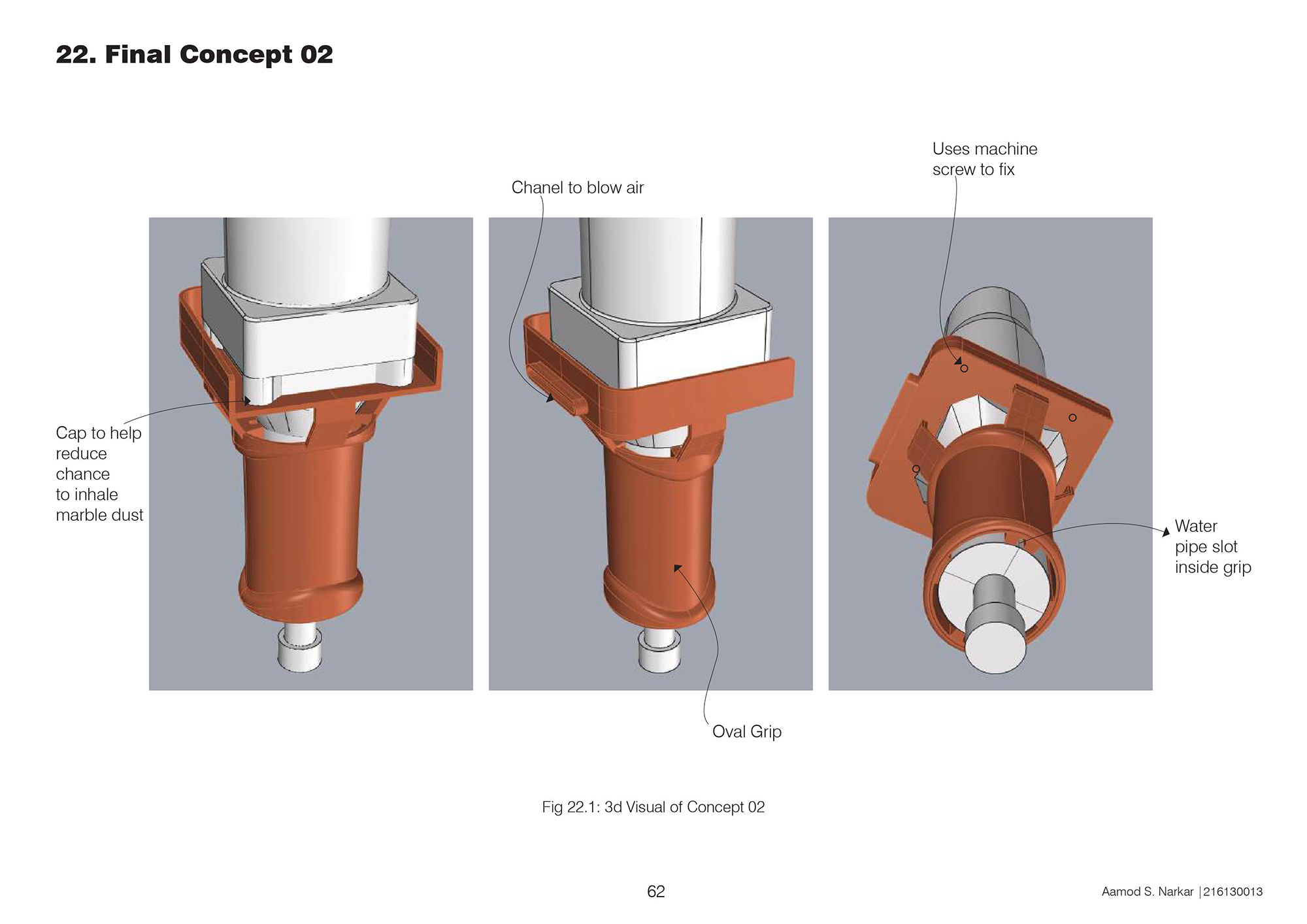

• Final Concept 02

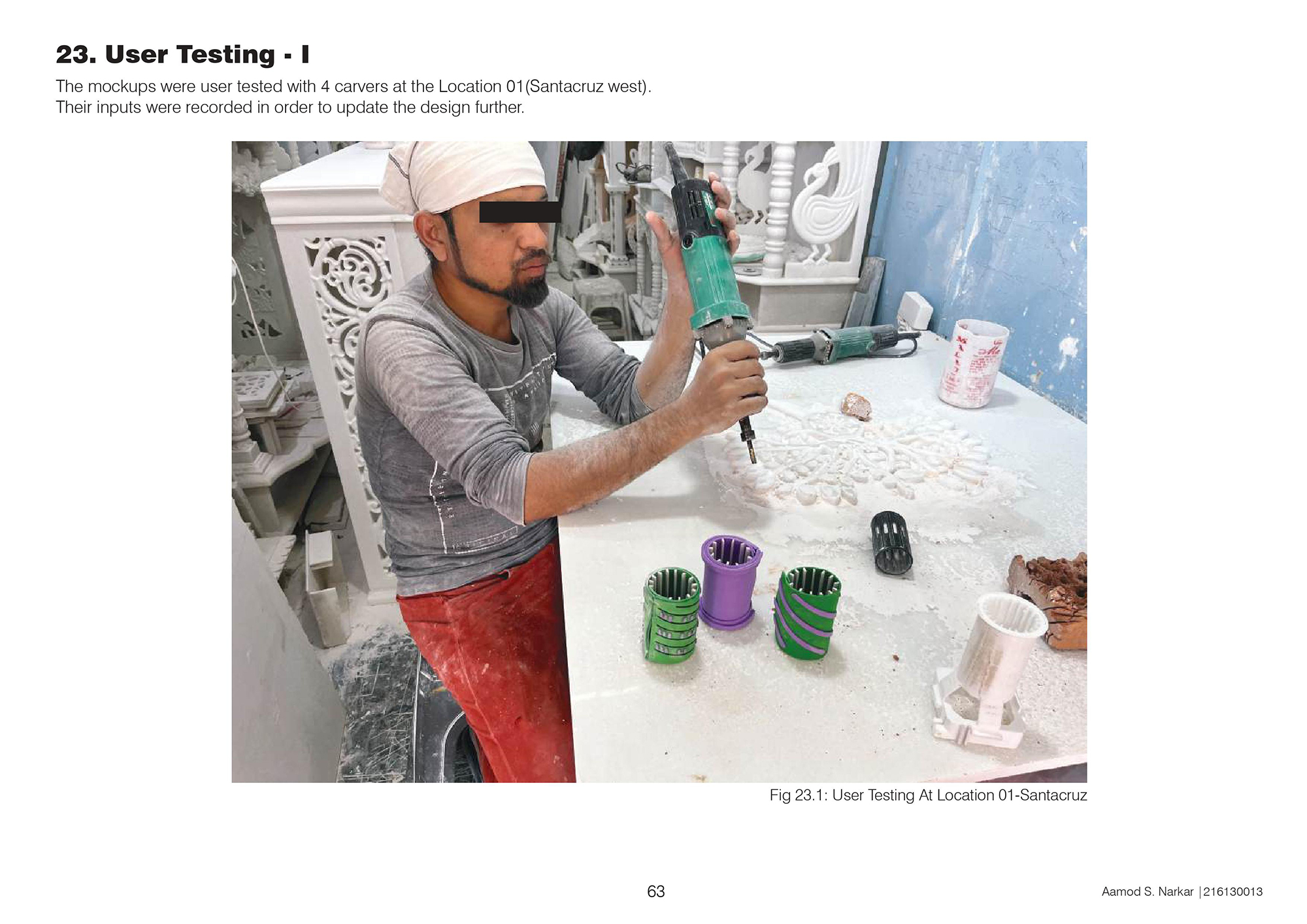

• User Testing - I

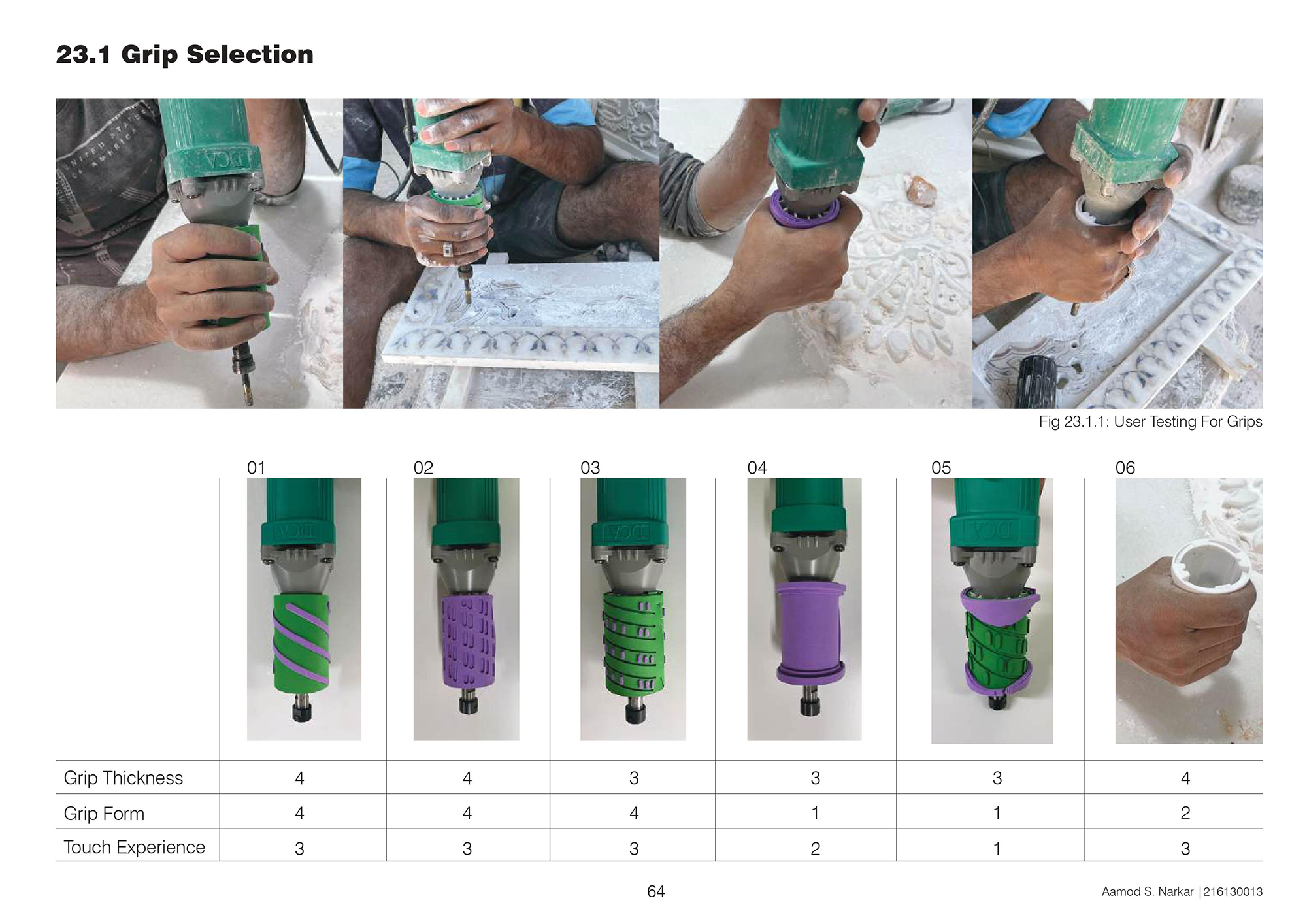

- Grip Selection
- Clamping

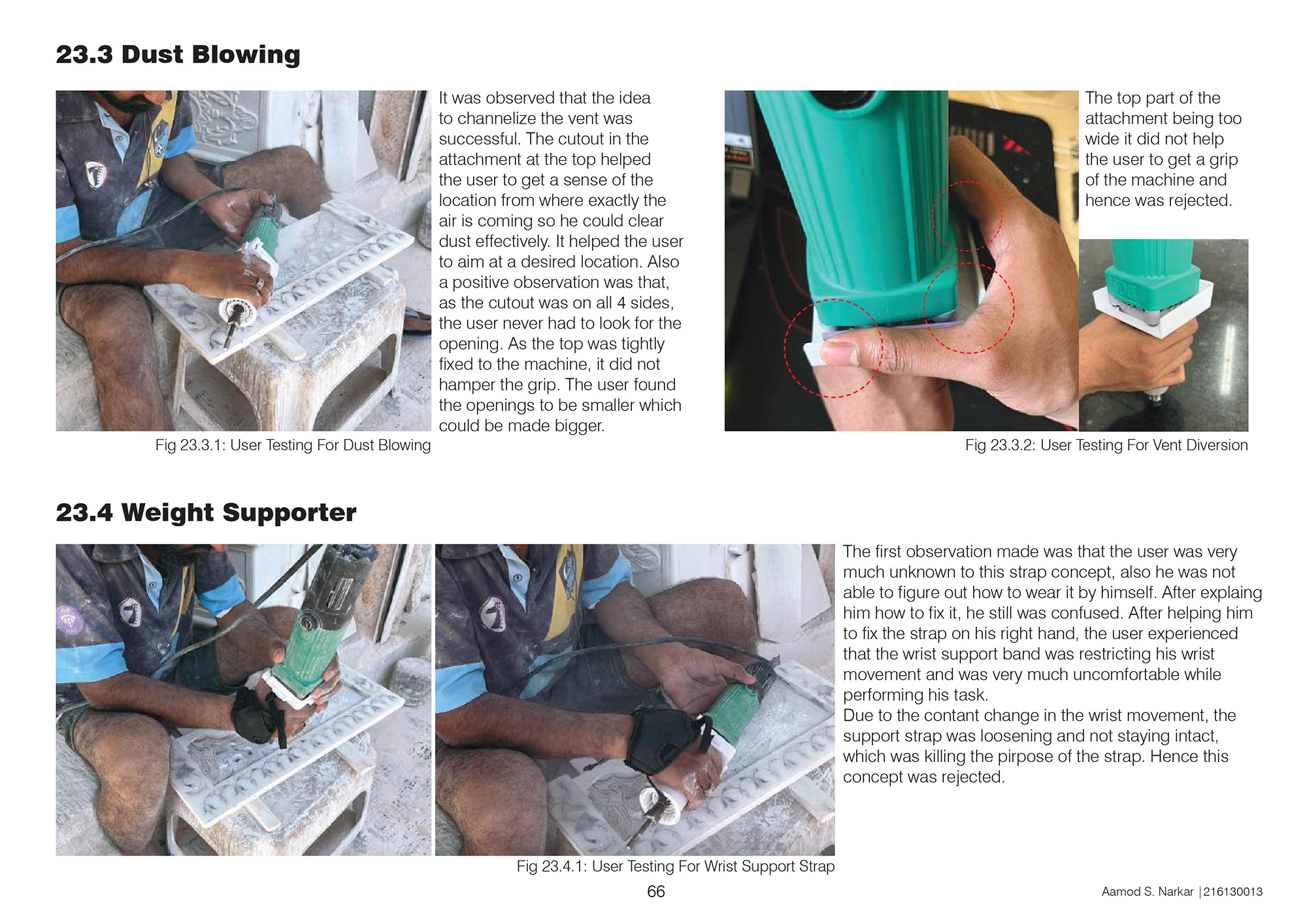

- Dust Blowing
- Weight Supporter

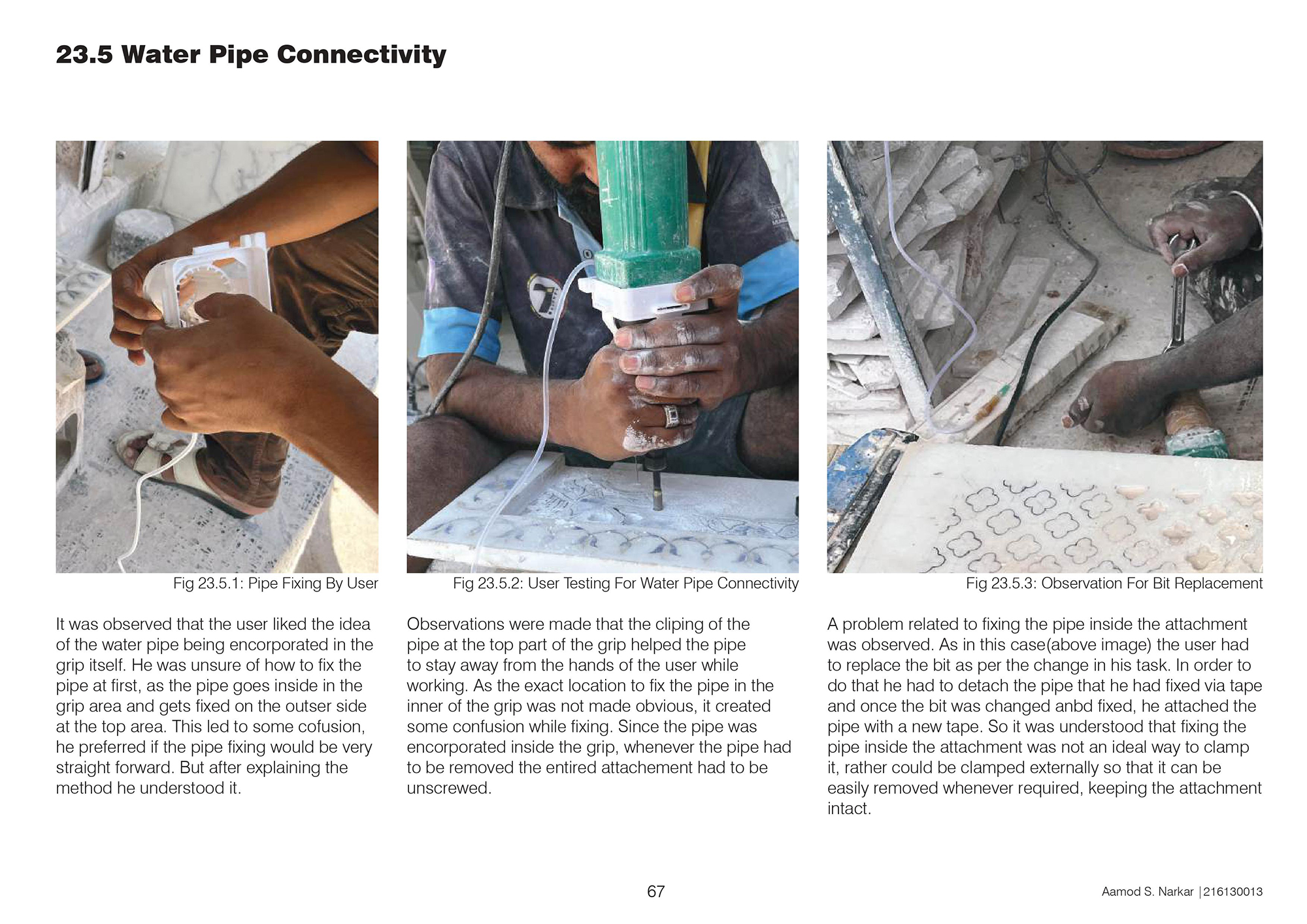

- Water Pipe Connectivity

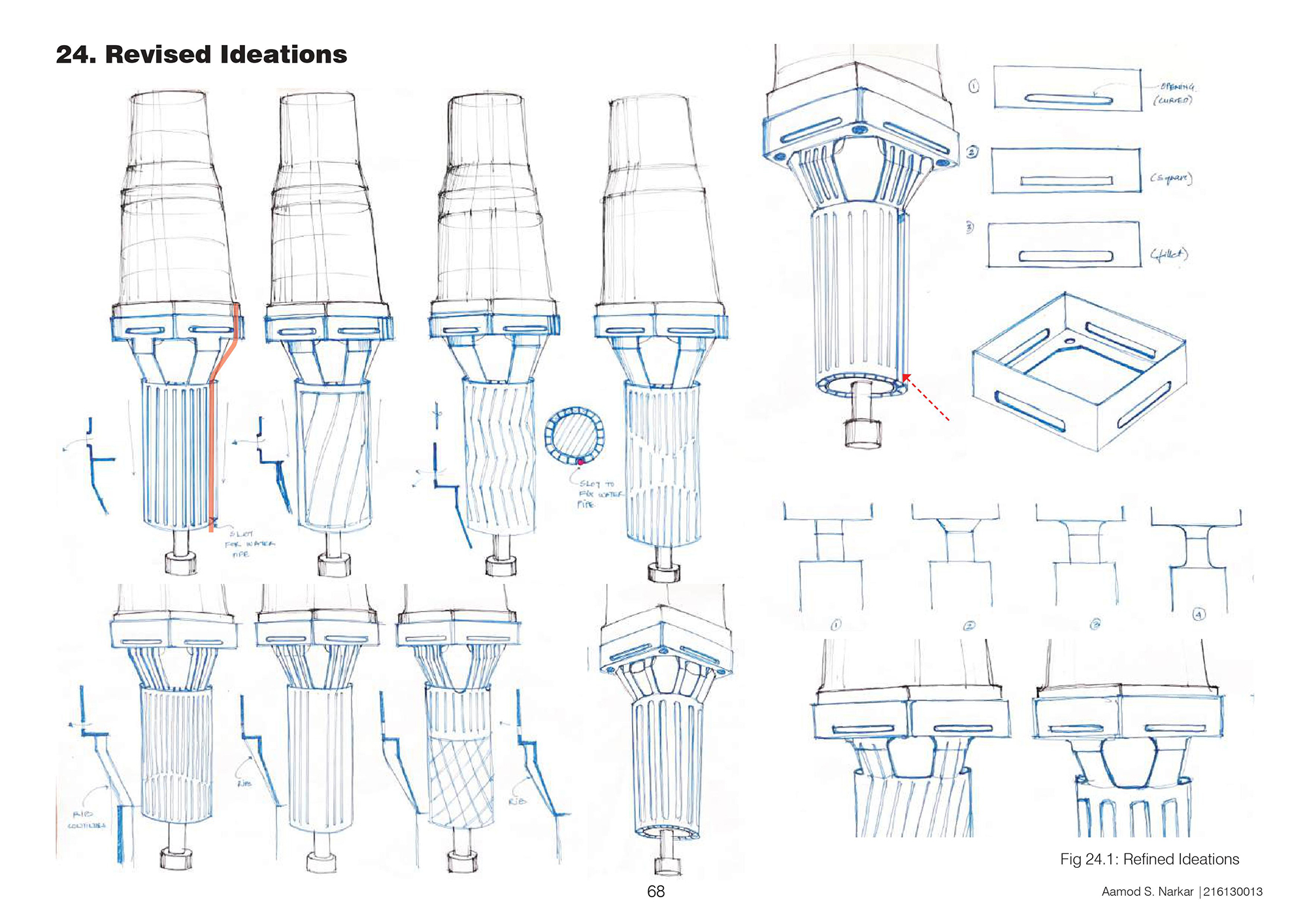

• Revised Ideations
• Revised Concept 01

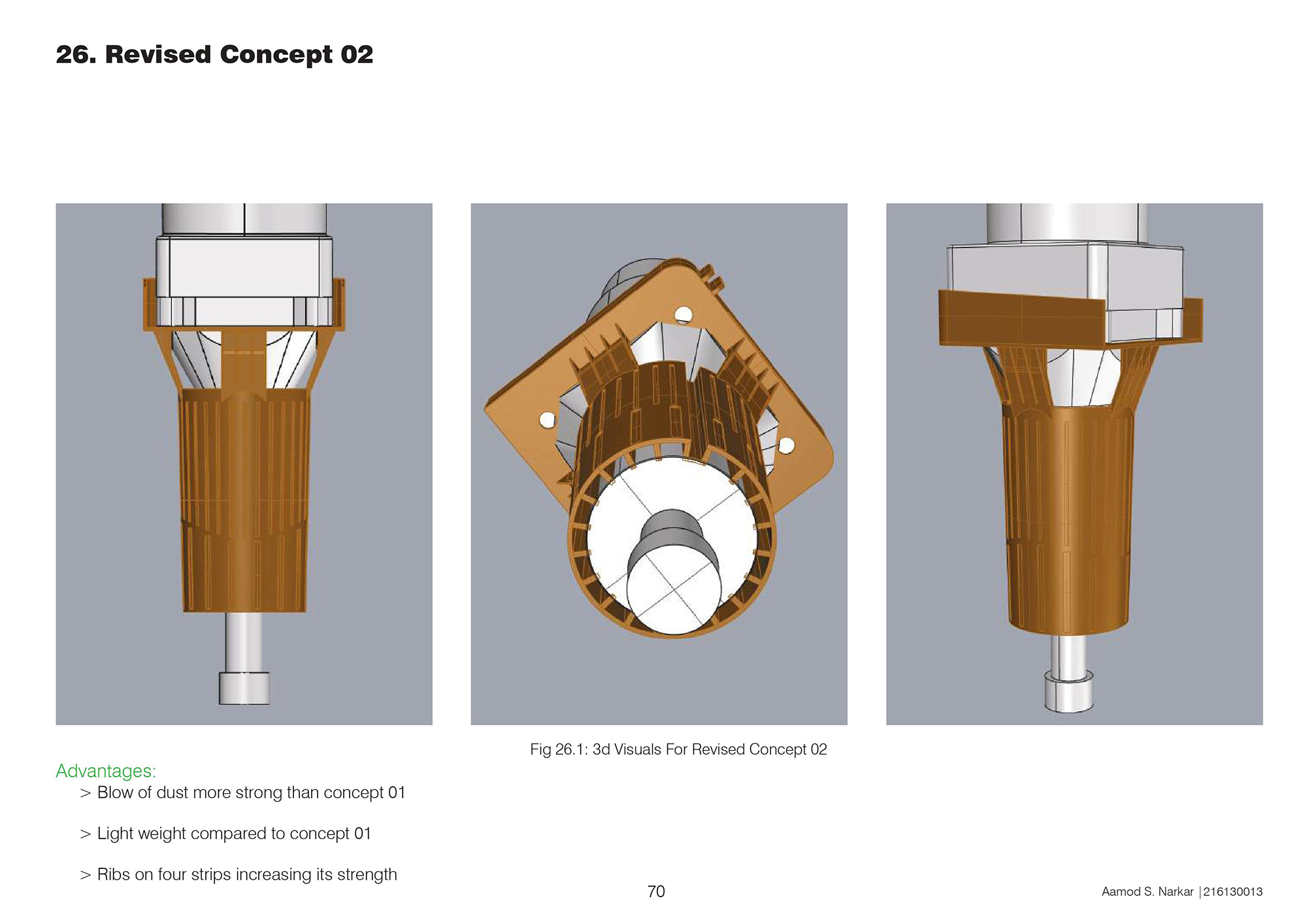

• Revised Concept 02

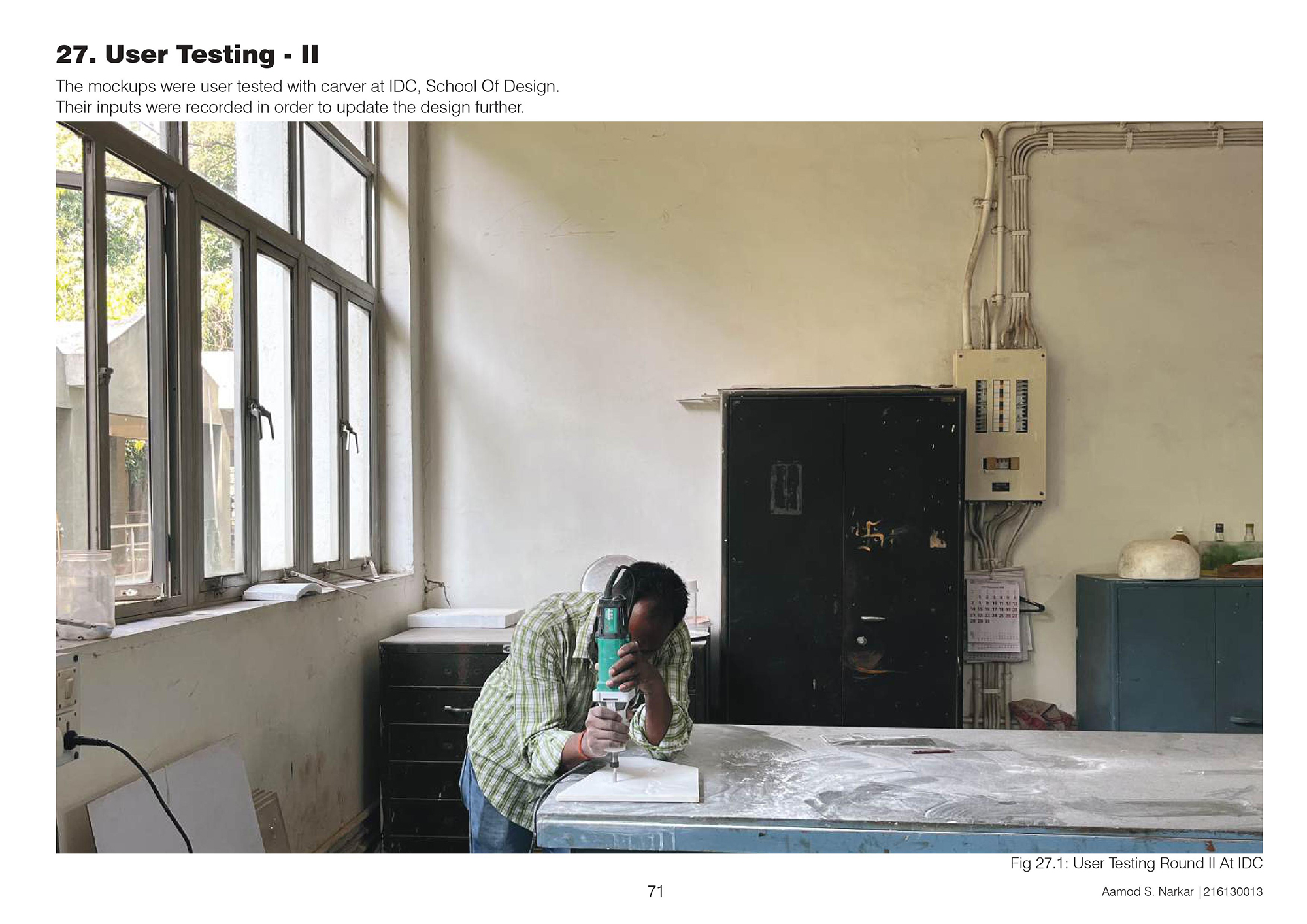

• User Testing - II

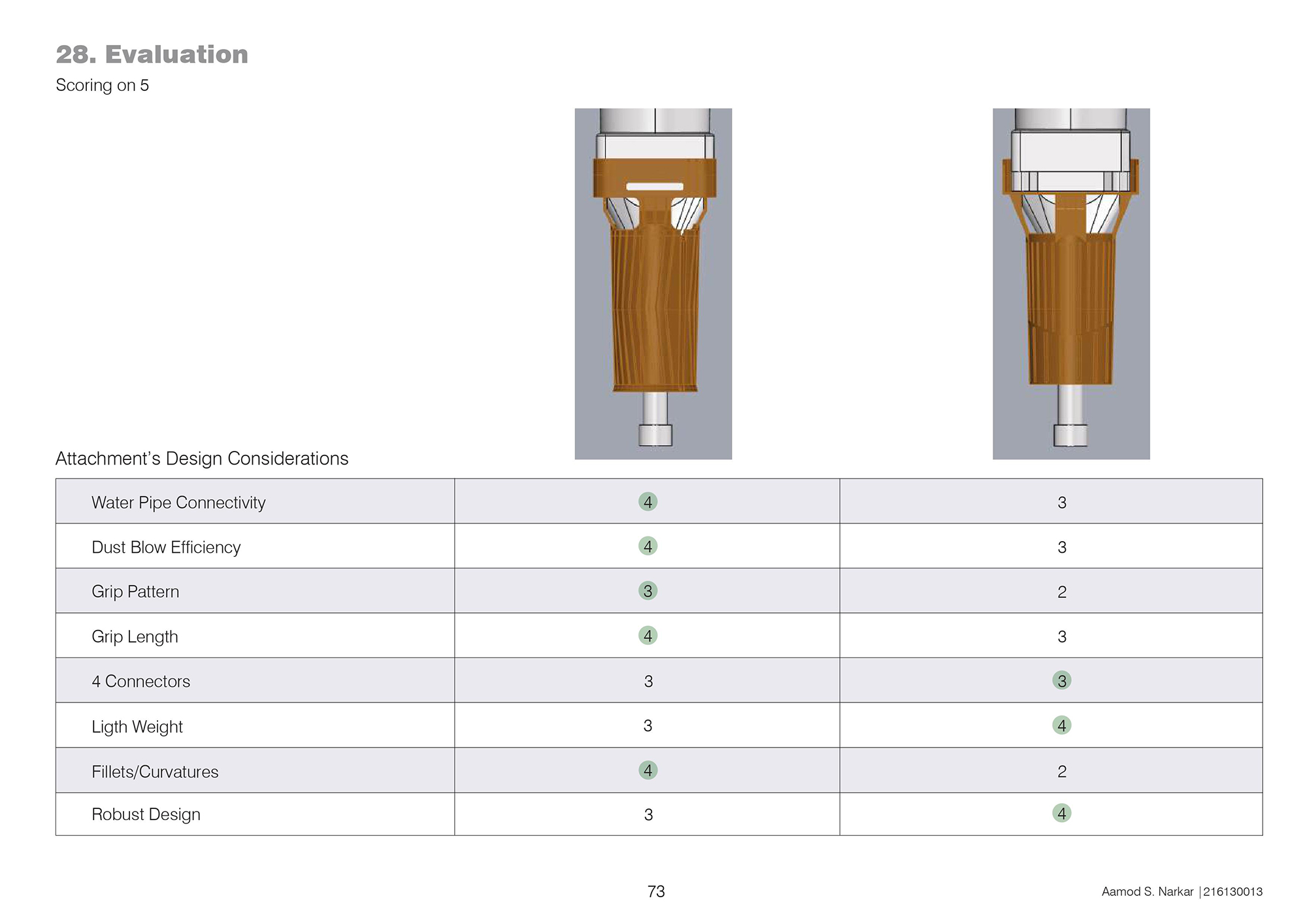

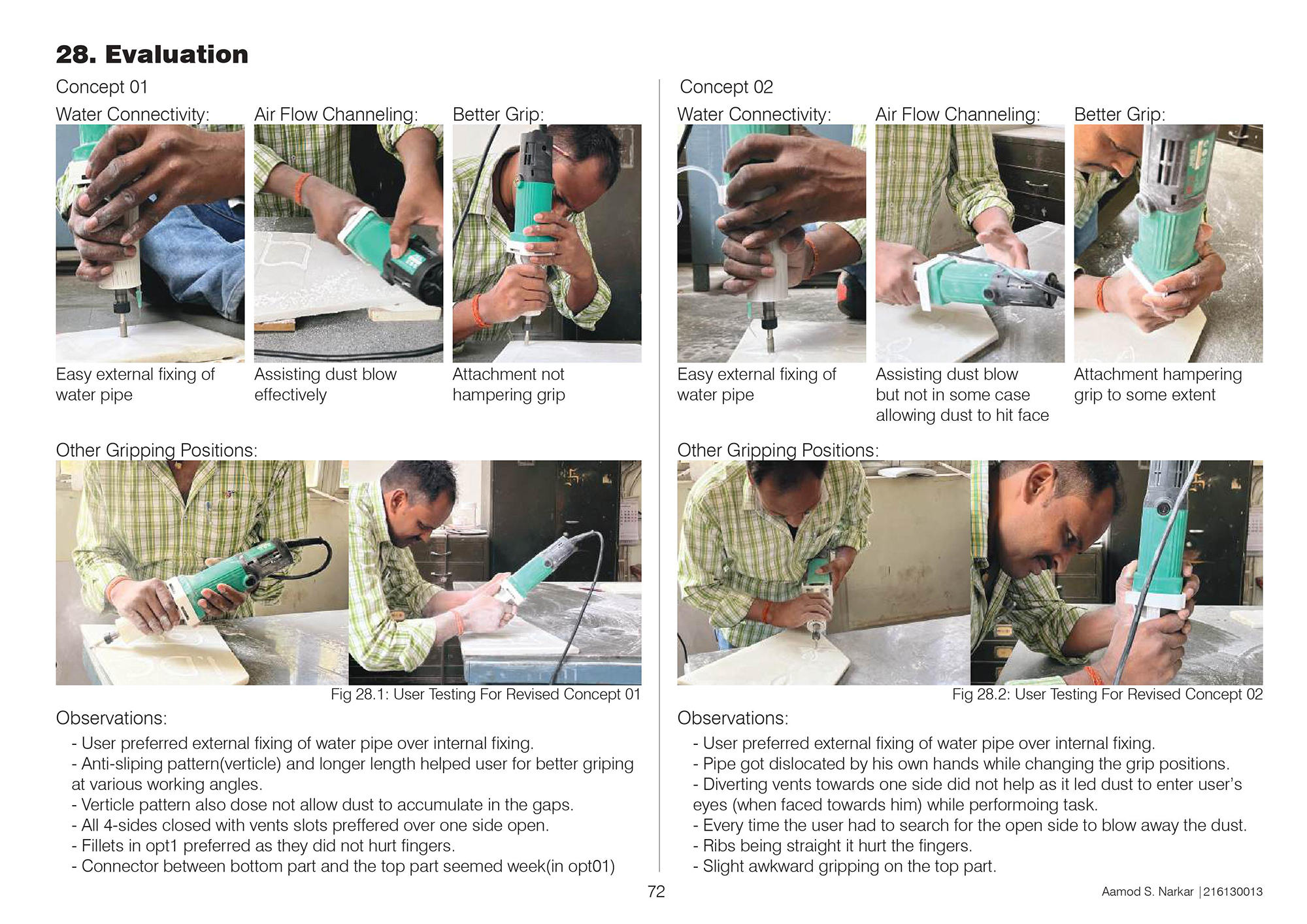

• Evaluation

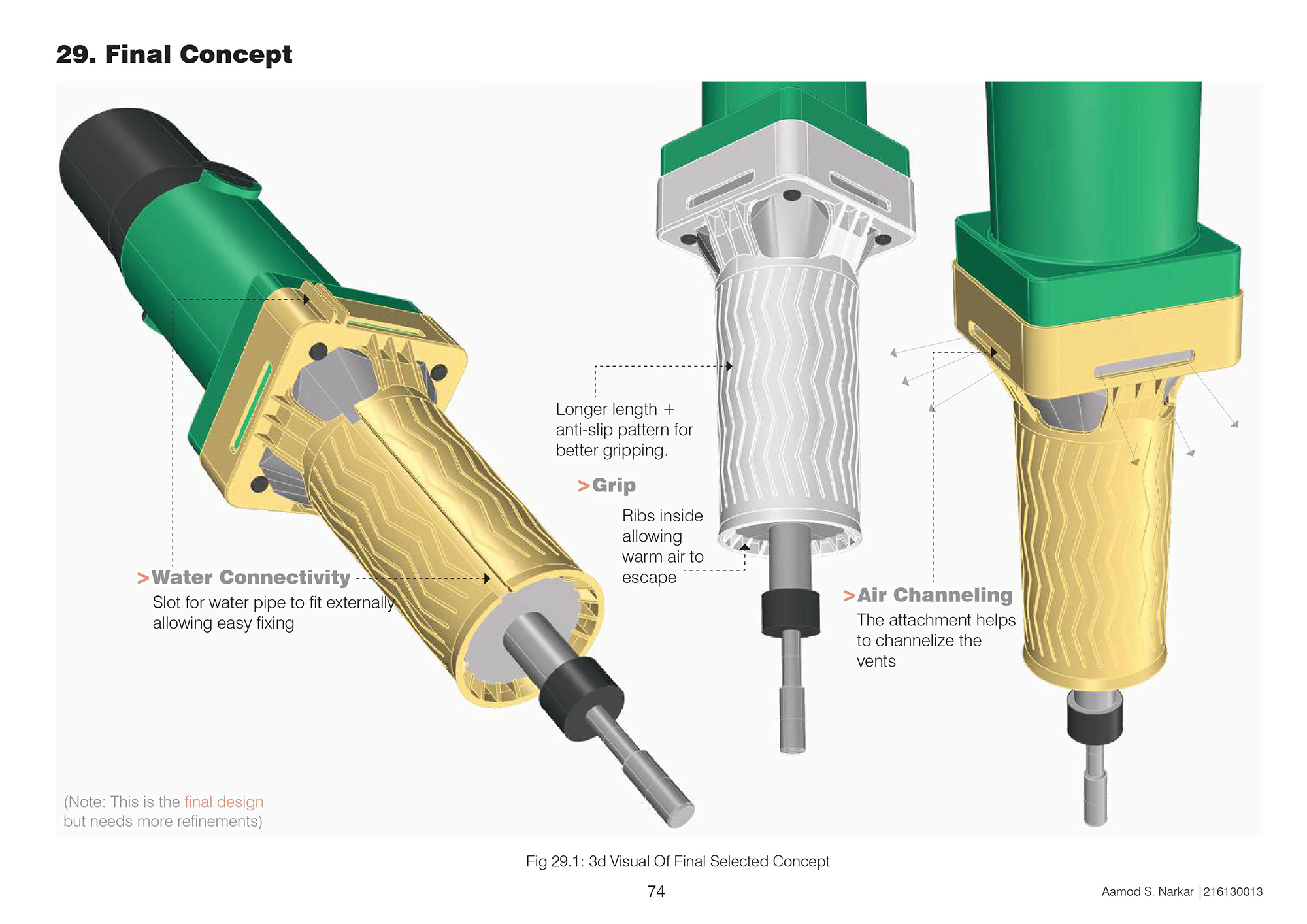

• Final Concept

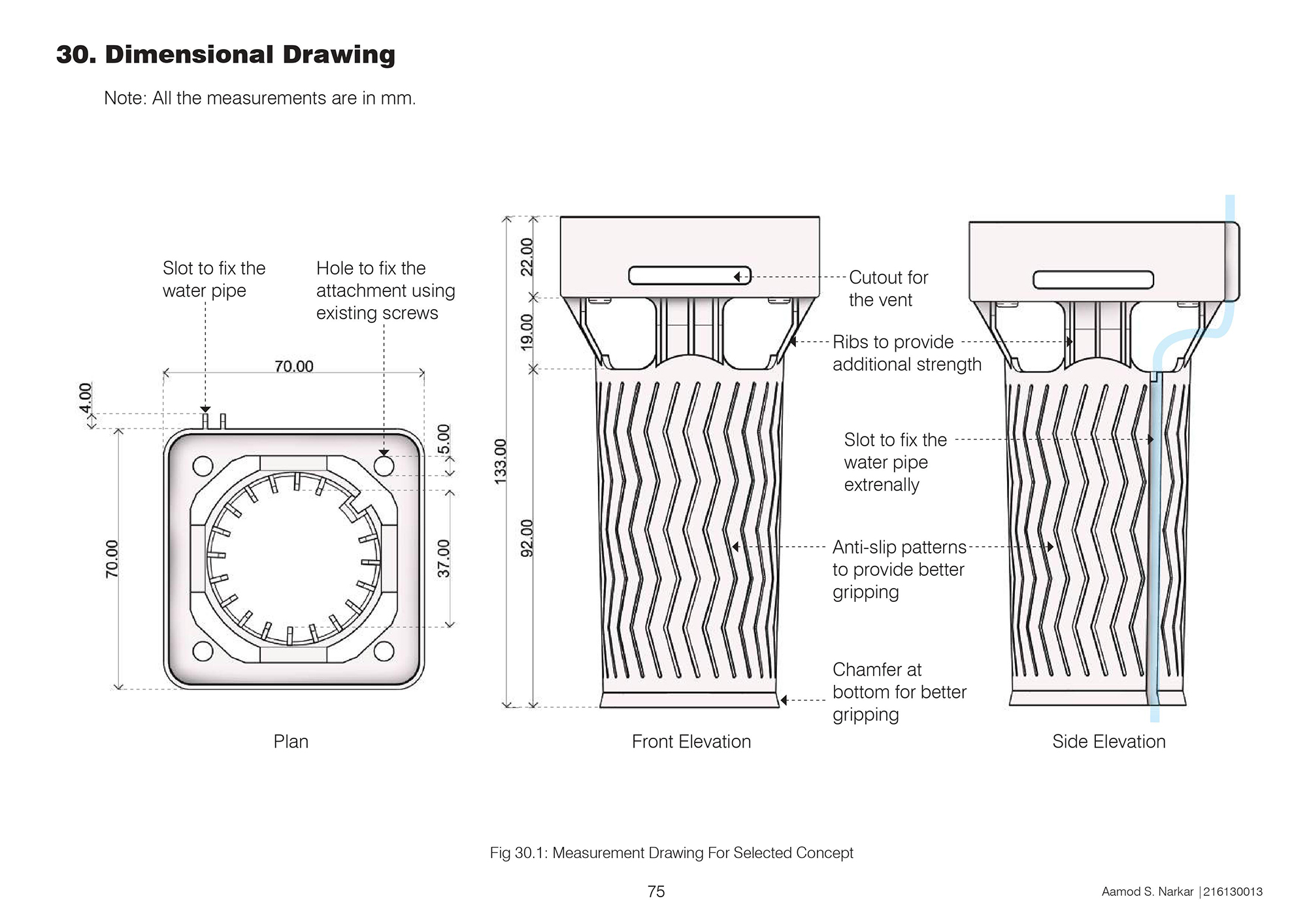

• Dimensional Drawings
• Material And Process

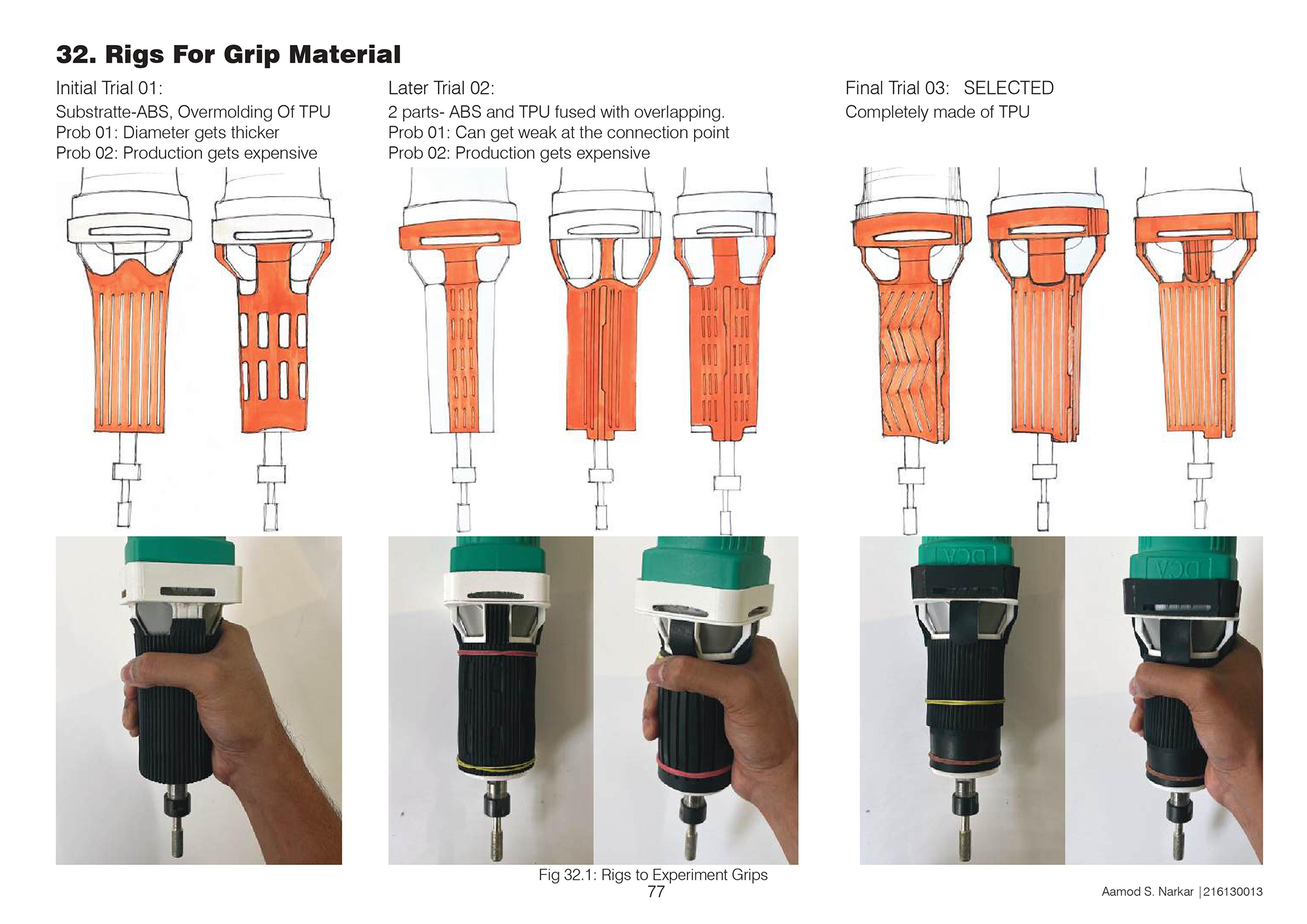

• Rigs For Grip Material

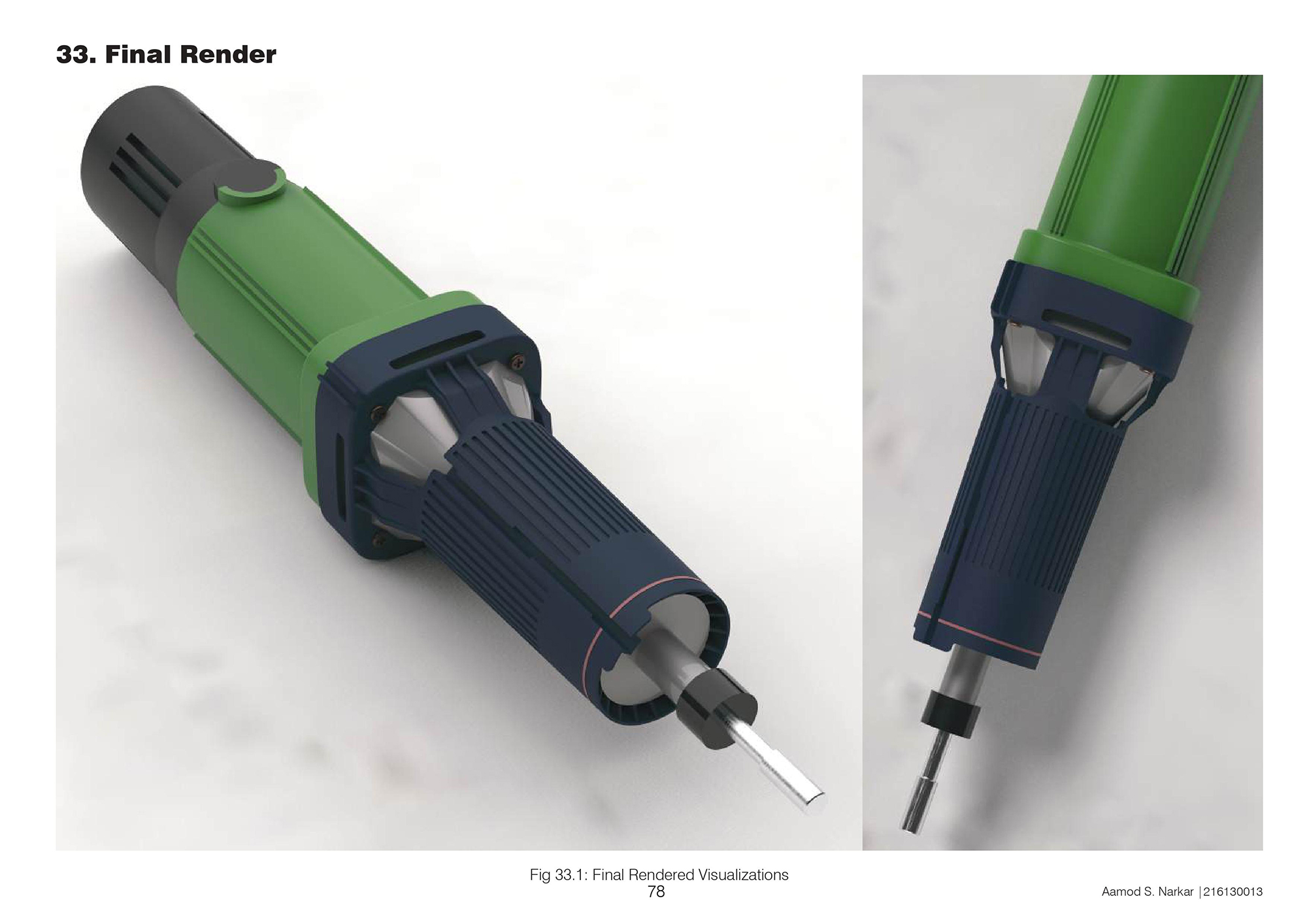

• Final Renders

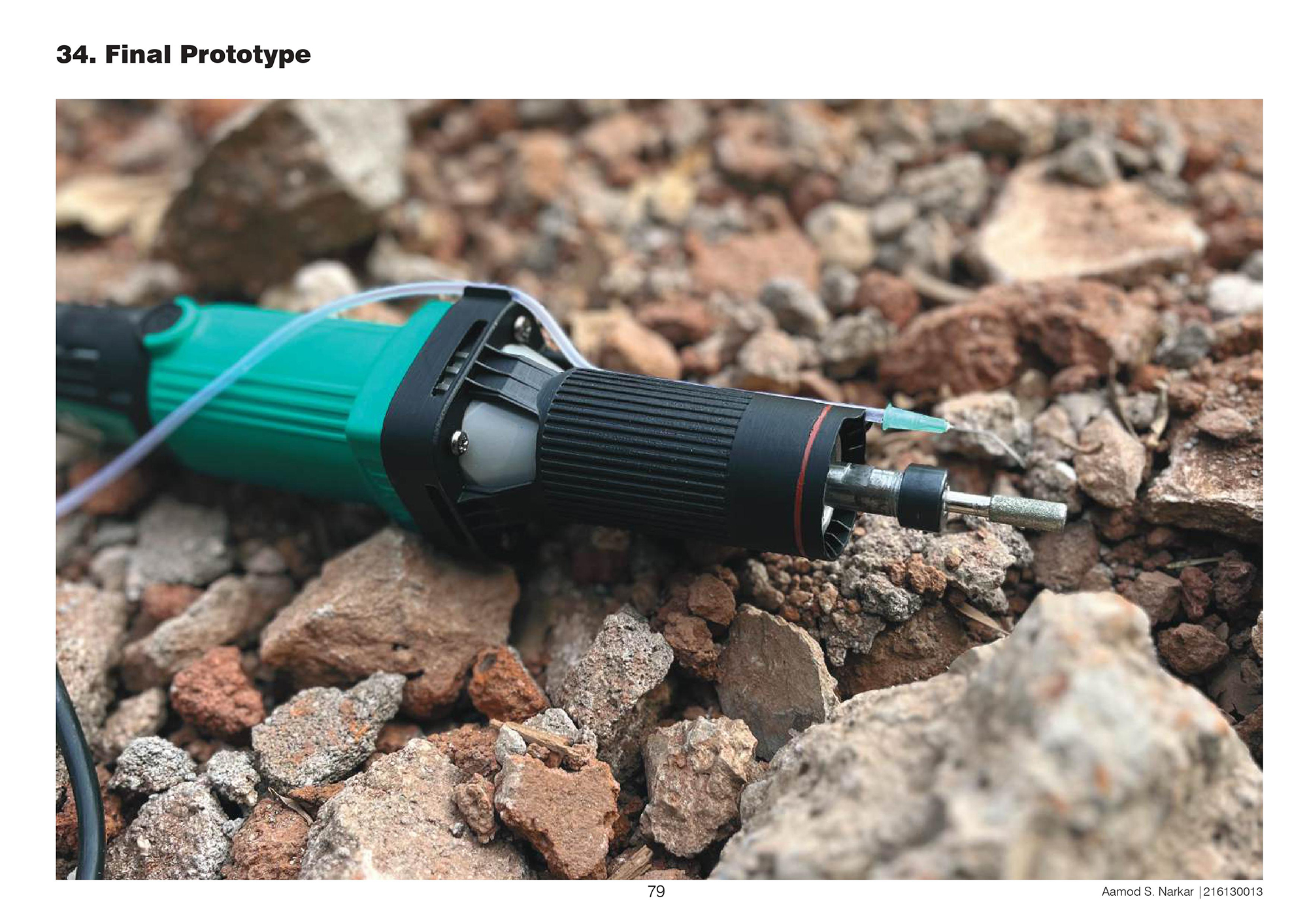

• Final Prototype

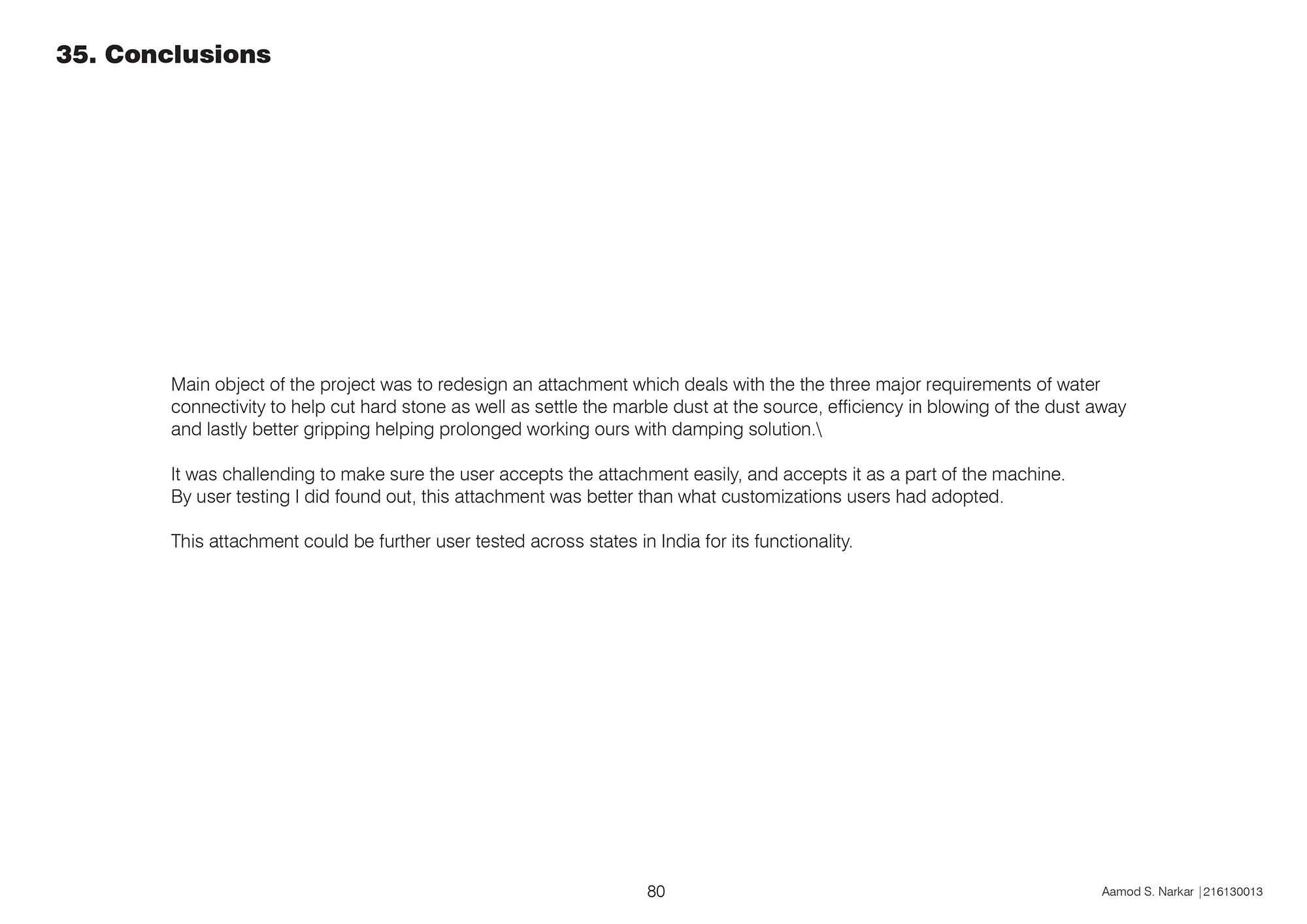

• Conclusions

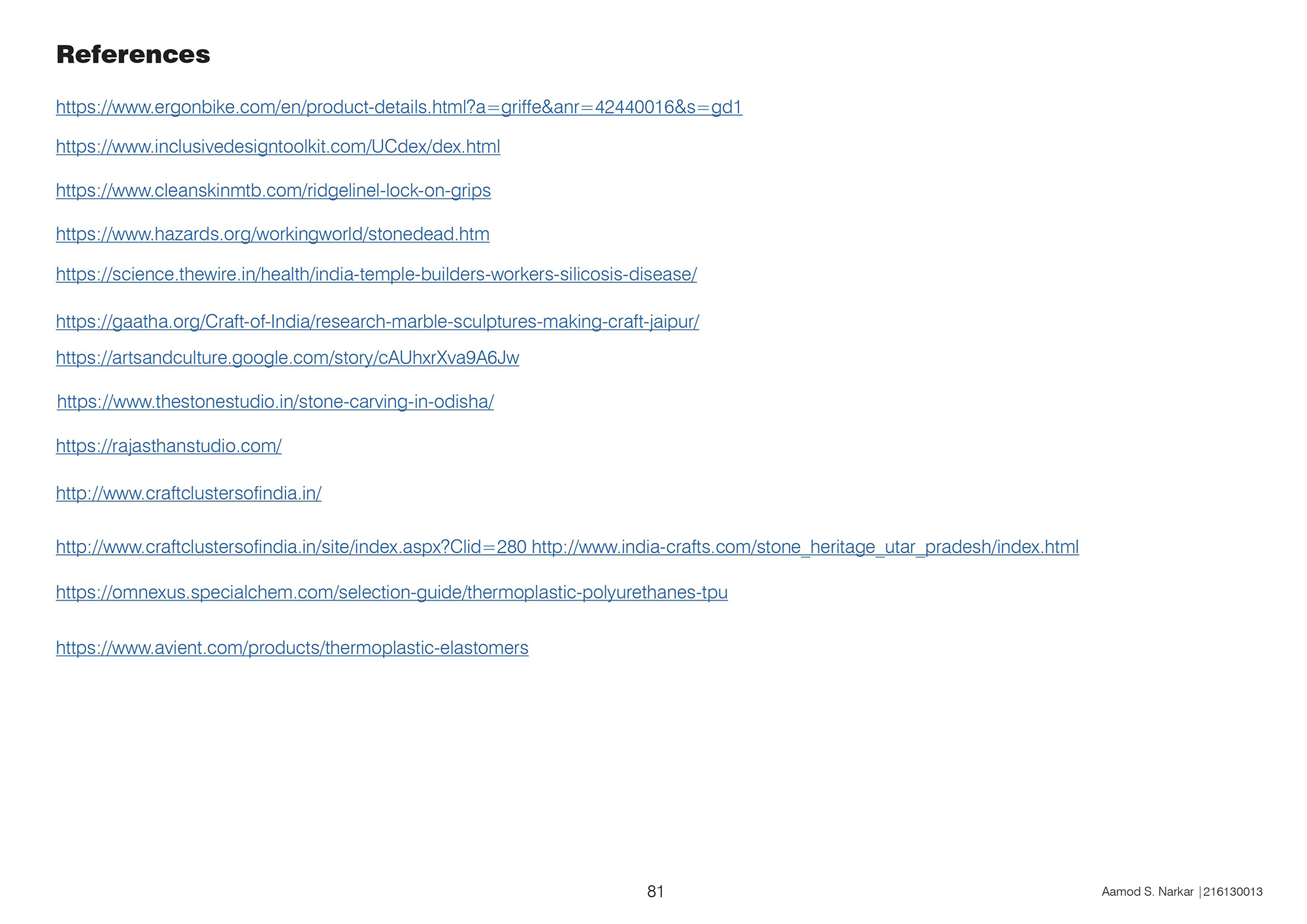

• References
Case Study Download:
• Die Grinder Attachment for Marble Carvers_Report......
